Bernina B570QE embroidery machine.
17,098.00 zł
13 900,81 zł Netto

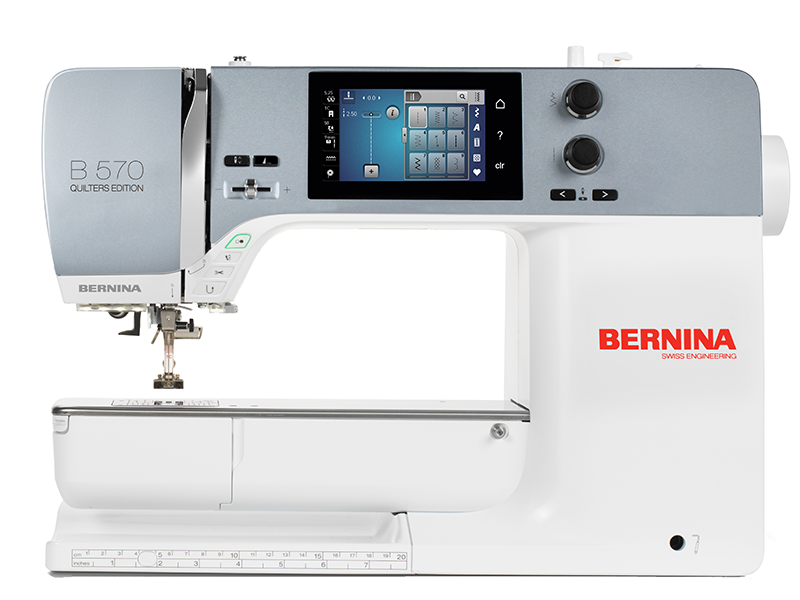

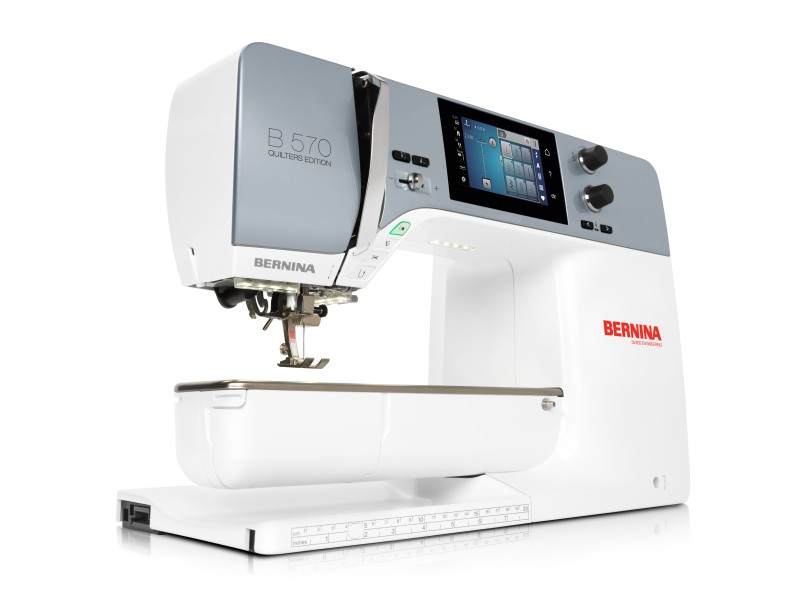

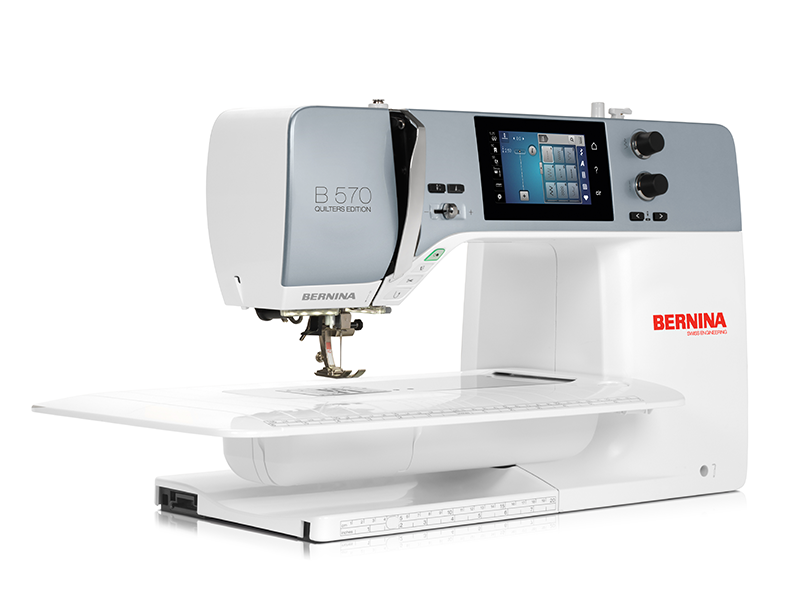

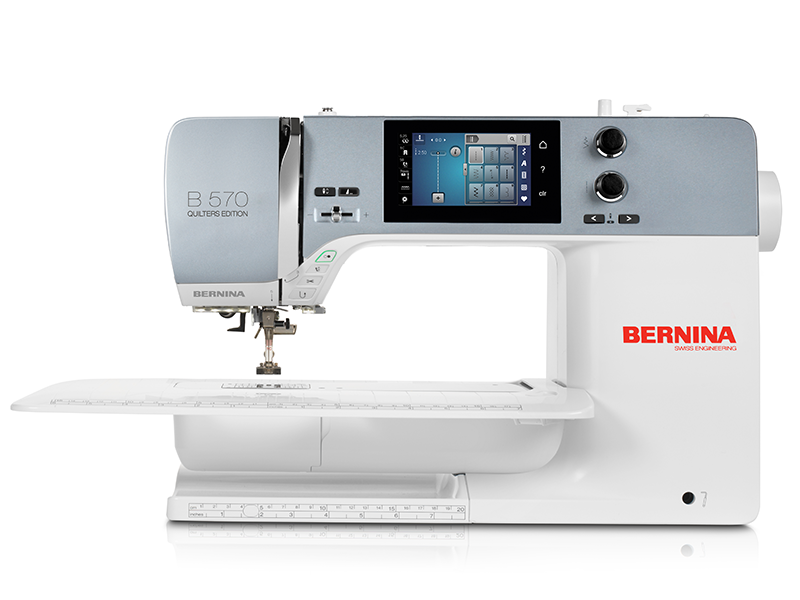

Bernina B570QE embroidery and sewing machine
The professional, reliable Bernina 570QE emb roidery machine is a tool that will allow even inexperienced users to get the best possible results. It has been made of the highest quality components, which make up a robust and practical device, perfect for efficient use. It is also extremely easy to use, thanks to the convenient joystick control and the included instructions in Polish. Automatic adaptive thread tension is a Bernina innovation - this parameter can be controlled and automatically corrected on the fly. The industrial gripper works quickly and at the same time extremely efficiently.
TheBernina embroidery machine in this model features a large embroidery area (400 × 150 mm), which greatly improves work on bulky materials, as well as the use of the latest technology. It has a convenient screen, where everything is clearly visible, and a rich embroidery tutorial, providing excellent learning results. The Bernina embroidery machine has a menu in Polish.
It uses the Bernina DesignWorks Tool software , allowing you to create original and unusual embroidery designs. Even hats or sleeves can be decorated with it.
Bet on the Bernina brand - turn your ideas into reality.
ENJOY A 7-YEAR DOOR-TO-DOOR WARRANTY AND FREE ANNUAL WARRANTY INSPECTIONS.
Take a look at the Bernina channel - Instructional videos and short clips about the machine:
Sewing: : https://www.youtube.com/playlist?list=PLfT1DJU1aElqlq3UMP_i818ziF1M0Apf2
Embroidery: https://www.youtube.com/playlist?list=PLfT1DJU1aEloCHPxV3lnWR48crtFdgSwt

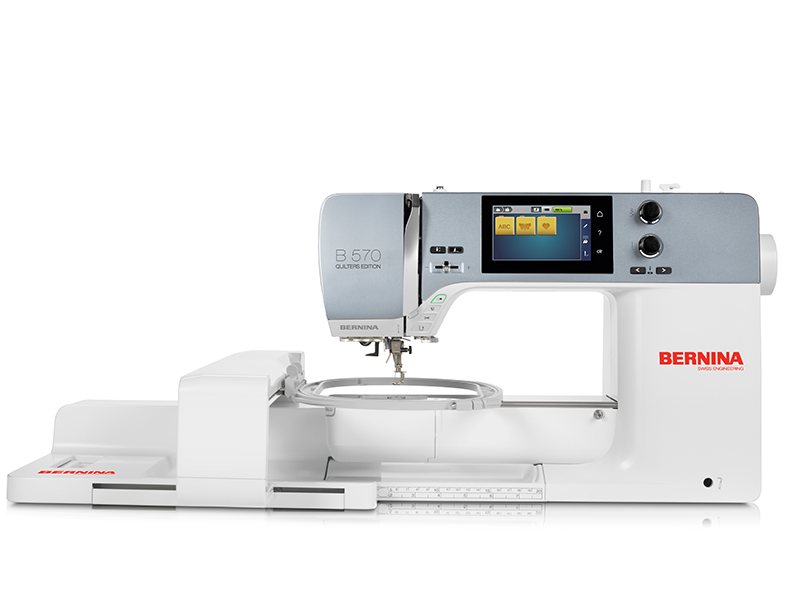

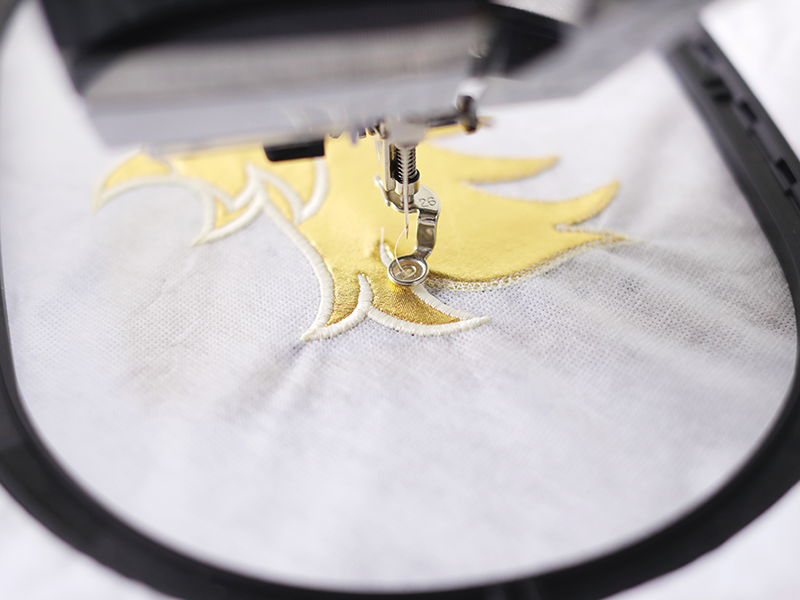

Embroidery FEATURES (When you purchase the optional embroidery module)
Large embroidery area, as large as 400 x 150 mm!
Bernina B570QE machine and embroidery machine has an embroidery field of 400 x 150 mm.
It embroiders on caps, legs, sleeves
The embroidery machine has a built-in so-called free arm, so we can embroider on sleeves, legs or narrow infant garments. After purchasing the optional Bernina tambour for embroidery on caps, we will get the possibility to embroider on caps. The embroidery area is15 x 13 cm.
Modern rotary gripper BERNINA HOOK
The gripper is the heart of the Bernina machine. The embroidery machine uses the modern 9th generation BERNINA HOOK rotary gripper. It allows for an impressive embroidery speed of 1000 strokes/minute. It is milled by robots from a block of metal, rather than poured into a mold. This ensures a perfectly smooth path for the thread. Guaranteed optimal, consistent thread tension. Easy to use: easy removal, easy cleaning, easy installation. In addition, the bobbin capacity is 70% larger than with a traditional shank. BERNINA HOOK is made of high quality materials.
Large color touch screen 4.3 inch
The B570QE machine and embroidery machine has a large 4.3-inch touch screen, HD resolution and 180-degree viewing angles, where you select functions, stitches and settings. The screen has contrasting, bright colors which is less tiring for the eyes.We can also adjust the brightness of the screen for greater comfort.
Programmable skip stitch trimming
The B570QEsewing and embroiderymachine trims threads that connect, for example, letters or color blocks. You can set the length of thread trimming sections No need to do it manually!
Function of saving embroidery to memory
Bernina B570QE sewing machine and embroidery machine has a function to save your embroidery designs to your personal memory.
Embroidery set
In the set we have, as many as 250 thematically different embroideries. Unlimited possibilities. Unleash your imagination!
7 embroidery fonts
In the set, up to 8 multidimensional embroidery fonts. Create and embroider lettering and monograms. Sign your designs.
Sensor for top thread breakage and missing bottom thread in the bobbin
The Bernina B570QE sewing machine and embroidery machine has a top thread break sensor and a lack in the bottom thread bobbin.
Automatic Adaptive Thread Tension
BERNINA Adaptive Thread Tension, a BERNINA innovation,ensures perfect thread tension during sewing to achieve perfect stitch quality on both sides of the fabric. Once the tension is set according to the thread and fabric used, BERNINA Adaptive Thread Tension will constantly check the thread tension, adjusting it automatically as needed.
Automatic programmed thread trimming
The Bernina B570QE sewing machine has an automatic thread trimming function. We can program the length of the thread section after cutting from 1-15 mm. Just press the button and the thread will be cut automatically. Great working comfort!
Automatic needle threader
The sewing machine has an automatic needle threader that is easy to use and soft, comfortable. Very necessary, after all, you don't have to reach for your glasses! When you lower the needle threader lever, the screen shows accurate, video threading instructions!
Robust, durable construction
High Swiss quality! The embroidery machine is big heavy, solid and sturdy. Made of the highest quality materials, which stabilizes the machine and reduces vibration. The machine's components and frame are made of steel. It has a reinforced "Heavy Duty" construction.
High, adjustable sewing speed of sewing
Sewing speed, up to 1000 stitches per minute. We can program a lower maximum speed if we need slow sewing for certain reasons for complicated projects.
Separate motor for winding the bobbin
We can wind the bobbin while embroidering or sewing. A separate motor is used for this. Super helpful!
USB port
The machine has a USB port, which gives you the ability to connect a USB key with updates or designs that can be imported.
"Restart" function of the pattern
The function gives you the ability to restart where the stitch was interrupted.
Professional lighting with 12 LEDs
The machine is equipped with LED lighting with 12 LED lights. Energy saving, lifetime warranty. Monochromatic light close to natural light. It does not cast shadows and does not tire your eyes! The machine has adjustable light intensity can also be programmed to turn it off completely!
Readout of multiple pattern formats
The embroidery machine will show on the screen embroidery files in many formats third party vp3,vip,pec,hus,dst,exp,jef,pes
Extensive embroidery editing and control functions
Very rich functions available on the screen: pattern editing, combining embroidery, positioning, rotation, vertical and horizontal mirroring, scaling.
"Invisible Secure & Smart Secure" function. - embroidery security
Invisible Secure is a perfect binding formation that is absolutely invisible. Smart Secure recognizes when no security stitches are programmed and adds some necessary ones. Perfect Function!
"Thread-Up" function.
Lower and raise the needle to pull the bottom thread up the fabric at the beginning of sewing. The underside of the embroidery will remain clean!
"Thread Away Mode" function"
The mode uses the movement of the tambour and pulls the tails of the cut threads to the back of the embroidery, making the top of the embroidery look clean and neat.
Working with cutting needles BERNINA CutWork module
Bernina B570QE sewing machine and embroidery machine works with cutting needles and Bernina Cutwork Tool module.You can very easily create openwork embroidery, appliqué or multiple layers for quilting motifs.
Working with the BERNINA PaintWork module
The B570QE sewing and embroidery machine works with the PaintWork module which allows you to paint embroidery with special pens!
Working with BERNINA CrystalWork module
The B570QE sewing and embroidery machine works with the CrystalWork module. This allows to create embroideries filled with Swarovski crystals or other goodies.
Fastening on a tambour
The Bernina B570QE sewing machine and embroidery machine has the ability to fasten on a tambour.
Free-hand embroidery
Bernina B570QE sewing machine and embroidery machine has the ability to embroider with hand guided fabric.
Separate motor for winding the bobbin
The Bernina B570QE sewing machine has a second, separate motor for bobbin winding. So you can embroider and wind thread on the bobbin at the same time.
Bernina WordART module included
Bernina B570QE also works with Bernina WordArt which allows you to create and "bend" our lettering in any direction.
Equipped with ARTLink module ( downloadable from the website).
With BERNINA ARTlink 9 you can open a range of native ART files and many other embroidery file formats. It includes a wide range of standard tabs to choose from. There are many useful features in the program.
Knowledge sharing
The help center contains many interactive visual tips that help you choose the best embroidery step by step.
Two tambourines included
Three tambourines included, measuring: 255x145mm, 130x100mm.
SEWING MACHINE FEATURES
Choice of 1450 programs stitch
The machine is equipped with 1450 stitch programs. There are 450 decorative stitches included. We can choose from special 73 stitches for quilting or 34 beautiful cross stitches. The selection of a particular stitch is done by touching the screen or selecting with the joystick.
Additional top feed BDF System
Integrated Dual Feed technology from Bernina®, precisely moves all types of fabric from top to bottom for perfect sewing every time. The Bernina B570QE machine and embroidery machine features the latest generation of this system.
Robust, durable construction
High Swiss quality! The embroidery machine is big heavy, solid and sturdy. Made of the highest quality materials, which stabilizes the machine and reduces vibration. The machine's components and frame are made of steel. It has a reinforced "Heavy Duty" construction.
Modern rotary gripper BERNINA HOOK
The gripper is the heart of the Bernina machine. The embroidery machine uses the modern 9th generation BERNINA HOOK rotary gripper. It allows for an impressive embroidery speed of 1000 strokes/minute. It is milled by robots from a block of metal, rather than poured into a mold. This ensures a perfectly smooth path for the thread. Guaranteed optimal, consistent thread tension. Easy to use: easy removal, easy cleaning, easy installation. In addition, the bobbin capacity is 70% larger than with a traditional shank. BERNINA HOOK is made of high quality materials.
Automatic Adaptive Thread Tension
BERNINA Adaptive Thread Tension, an innovation from BERNINA,ensures perfect thread tension during sewing to achieve perfect stitch quality on both sides of the fabric. Once the tension is set according to the thread and fabric used, BERNINA Adaptive Thread Tension will constantly check the thread tension, adjusting it automatically as needed.
BSR-Bernina Stitch Regulator function for quilting
The perfect function for quilting enthusiasts ! The BSR foot supports non-slip sewing and straight or zigzag stitch quilting,ensuring stitches of exactly the same length even at different sewing speeds .
Pivot/Hover function
The system automatically raises and lowers the foot and sets the pressure of the foot depending on the thickness of the material used. Perfectly sew any material! You can program a specific foot lift height.
Convenient Joystick for control
The machine has one knob to control all functions. This is the Joystick version. Great comfort!
Large color touch screen 4.3 inch-menu in Polish language.
Bernina B570QE machine and embroidery machine has a large 4.3 inch touch screen, HD resolution and 180 degree viewing angles, where you select functions, stitches and settings. The screen has contrasting, bright colors which is less tiring for the eyes. We can also adjust the brightness of the screen for greater comfort. Menu in Polish language!
Professional lighting with 12 LEDs
The machine is equipped with LED lighting with 12 LED lamps. Energy saving, lifetime warranty. Monochromatic light close to natural light. It does not cast shadows and does not tire your eyes! The machine has adjustable light intensity can also be programmed to turn it off completely!
New generation DC DC motor
These are gearless, economical motors that provide very quiet operation. They work very smoothly even at low speed. They provide full needle insertion force when sewing thick materials, even at low speed.
Electronically controlled knee lever
You raise the foot with the knee lever. You touch your knee and the machine stops sewing, raises the foot and cuts the threads! All in one motion.
Speed controller with needle raising and lowering function
You raise and lower the needle with the programmable speed controller! All in one motion.
Programmable FIX Function
The FIX function automatically ties the threads at the end of the stitch and protects them from snagging. On the Bernina 570QE machine, you can program the number of binding stitches, thread trimming and whether the foot should be raised or lowered. All you have to do is activate it with a button. The activated function remembers when the threads are tied.
7 programmable fonts
Bernina B570QE machine and embroidery machine has 7 programmable sewing fonts. Signature your designs!
Large working area of 216 mm!
The Bernina B570QE machine and embroidery machine has a large working area of 216 mm on the right side of the needle so you have plenty of room to work comfortably and a great view of your sewing project.
Automatic programmable thread cutting
The Bernina B570QE has an automatic thread cutting function. We can program the length of the thread section after cutting from 1-15 mm. Just press the button and the threads will be cut automatically. Great working comfort!
Automatic needle threader
The sewing machine has an automatic needle threader that is easy to use and soft, comfortable. Very necessary, after all, you don't have to reach for your glasses! When you lower the threader lever, a detailed, video threading instruction appears on the screen!
Automatic foot pressure
Thanks to the infinitely adjustable foot pressure, we will easily sew thin and thick materials.
High, adjustable sewing speed
Sewing speed, up to 1000 stitches per minute. We can program a lower maximum speed if we need slow sewing for certain reasons for complicated projects.
Additional sewing speed adjustment
Additional sewing speed adjustment with the slider on the front housing.
Sensor for top thread breakage and lack of bottom thread in the bobbin
The Bernina B570QE sewing machine and embroidery machine has a top thread break sensor and a bottom thread missing from the bobbin.
USB port
The machine has a USB port, which gives you the possibility to connect a USB key with updates or designs that can be imported.
Share the knowledge - "Help" on the screen
The help center contains a number of interactive visual tips that provide step-by-step assistance in choosing the best sewing technique or stitch.
Short and long-term memory
The machine has memory levels where we can save our stitch and embroidery compositions.
START/STOP function
A function that allows the machine to run without using the speed controller. With the Start/Stop buttons we start and stop sewing.
Needle positioning
Needle positioning is a useful function that allows you to sew accurately in difficult places. It is especially useful when sewing zippers or piping with tape. We have 11 needle positions. We set the position with the slider on the front casing of the machine.
Automatic button size measurement system
The Bernina B570QE machine has an automatic button diameter measurement function. We apply the button to the screen and by turning the "joystick" knob we adjust the size of the hole that is set.
Automatic and manual buttonhole hemming
The Bernina B570QE machine and embroidery machine makes as many as 16 types of buttonholes automatically to the size of the button. You can also use the function of making buttonholes manually "step by step".
Sewing with a double needle
We can use a double need le with different spacing of 2.5 - 6.0 mm for sewing. In this way we will obtain a straight two-needle stitch. The machine also has a protection against putting on the wrong double needle.
STOP function
We can stop the machine at any time.
Stitch length and width adjustment
Infinitely adjustable stitch length and width. The maximum stitch width is 9.0 mm. The adjustments are very precise, stitch length to 0.05 mm, width to 0.1 mm.
Pattern mirroring
Amazing possibilities for creating new patterns using the mirroring function. We can use the reflection in two planes, i.e. horizontally and vertically. Then unprecedented compositions are created.
Pattern elongation function - Elongation
Amazing possibilities to create new patterns using the function of elongation of patterns while maintaining density.
Automatic STOP after filling the bobbin
The machine stops automatically when the bobbin is full.
Button sewing program
The Bernina 570QE sewing machine has a special program for sewing buttons.
Easy Foot Attachment
Allows you to easily change the feet. You tilt the lever up and the foot falls onto the fabric. Then put the new one on with an upward motion and an automatic "snap" will occur and the foot is ready for use.
Changing parameters during sewing
On the Bernina B570QE machine and embroidery machine, you can change stitch parameters while sewing.
Full needle insertion force
The electronically controlled speed controller and the new generation DC motor guarantee constant full needle insertion force regardless of the speed at which you sew.
Large space under the foot
The large space under the foot, allows sewing thicker materials. We have no problem sewing multiple layers. This is very convenient. It is also easier to sew leather or denim.
Container for accessories
The Bernina B570QE sewing machine and embroidery machine has a convenient, accessory bin.
Free arm
It makes sewing round items much more convenient.
Table for expanding the work field included
It makes sewing very comfortable.
7-YEAR "door-to-door" WARRANTY and Annual Free Warranty Inspections!
All components and parts in the machine are covered by a 7-year warranty. We provide door-to-door service (door-to-door).
Standard equipment:
For sewing:
-Decorative stitch foot #1/1C
-Dual foot for decorative stitches#1D
-Overlock stitch foot #2/2A
-Foot for automatic buttonhole #3A
-Foot for locks #4/4D
-Open stitch foot #20C
-Bernina Stitch Regulator (BRS) -optional ( not included in standard equipment)
-Knee lever (FHS)
-Bernina narrow table
-Accessory storage box
-Soft cover
For embroidery:
-Large embroidery tambour, 14.5×25.5 cm
-Template for tambour, large
-Medium embroidery tambour, 10×13 cm
-Template for medium-sized tambourine
-Embroidery foot No. 26
-USB cable
-Set of embroidery needles
-Stencil holders
-White mesh for thread bobbin
-2 bobbin pads
-3 bobbin protectors
-4 bobbins (one in the drum)
-A set of needles
-Tailor's chisel
-Torx wrench, gray
-Screwdriver
-Torx angle wrench
-Brush
-Oiler
-Rysik, screen pointer
We invite you to purchase sewing needles for various materials, additional bobbins and feet for the machine. You will find everything in the category "Accessories"
Description of the above product is protected by copyright. Their use requires the permission of the copyright owner. Downloading the content of the above description without the consent of Wiking Polska Sp. z o.o. based in Krakow constitutes an act of unfair competition in the light of the ACT of April 16, 1993 "on combating unfair competition".
BB570QEh
6 Items
Data sheet
- Number of stitches
- 1450
- Guarantee
- 7 years
- Automatic buttonhole sewing
- 16 types of buttonholes
- Automatic needle threader
- Yes
- Automatic thread trimmer
- Yes
- Stitch tying function
- automatic
- Additional sewing speed adjustment
- Yes
- Extra table
- Yes
- Working space to the right of the needle
- 216 mm
- Knee lever
- Yes
- Exclusive Sewing Tutorial
- Yes
- Foot pressure function
- automatic
- Color Touch Screen
- 4.3 inches
- Saving stitches to memory
- Yes
- Number of needle positions
- 11
- Case
- soft
- Double needle sewing possible
- Yes
- Knives in the case
- 4
- Vertical mirror image
- Yes
- Horizontal mirror image
- Yes
- LED lighting
- 12 LEDs
- Accessory container
- Yes
- Start/stop button sewing without regulator
- Yes
- Button sewing program
- Yes
- Programmable fonts
- Yes
- Stitch length adjustment
- from 0.1 - 6.0 mm
- Stitch width adjustment
- up to 9.0 mm
- Hook type
- BERNINA rotary and pendulum
- Multi-directional sewing (left and right)
- NO
- Quilting stitches
- 34
- Decorative stitches
- 481
- Blind hemming stitches
- Yes
- Overlock stitches
- Yes
- Menu in Polish!
- Yes
- Stitches for stretch fabrics
- Yes
- Cross stitches
- 34
- Triple stitches
- Yes
- Free arm
- Yes
- Cursor showing the current embroidery position
- Yes
- Pattern rotation
- Yes
- Separate bobbin winding motor
- Yes
- Pattern scaling
- Yes
- Sewing without a speed controller
- Yes
- Needle retraction function after thread breakage
- Yes
- Integrated top material transport
- Additional integrated upper transport BDF - Bernina Dual Feet
- Internet upgrade
- Yes
- sewing speed
- 1000 injections/min
- Automatic needle positioning
- Yes
- Built-in screen stylus
- Yes
- Basting on the hoop
- Yes
- Needle stop in Up/Down position
- Yes
- Bobbin thread sensor
- Yes
- Thread break sensor
- Yes
- Stitch lengthening function
- Yes
- Stitch restart
- Yes
- Number of embroidered fonts
- 18
- Number of embroideries
- 250
- USB ports
- Yes
- Embroidery field
- 400x150mm
- Hoops included
- 2 pcs
- Smart save function
- Yes
- Adjusting the embroidery on the screen
- Yes
- Grouping patterns
- NO
- Undo/redo when creating pattern combinations
- NO
- Embroidery time by color
- Yes
- He does embroidery on hats
- Yes
- Performs embroidery on ready-made clothing
- Yes
- Alphabet
- 8 letter fonts
- Design your own stitches
- NO
- JOYSTICK multifunction knob
- Yes
- Automatic Adaptive Thread Tension
- Yes
- Programmable jump stitch trimming
- Yes
- Invisible Security feature
- Yes
- Smart Security feature
- Yes
- Pinpoint Placement feature
- NO
- Lower Thread Pull Up Function
- Yes
- Thread Pull function
- NO
- BSR-Bernina Stitch Regulator function
- Yes
- Automatic footer height setting
- Yes
- Floating footer function
- Yes
- Starter with the function of raising / lowering the needle
- Yes
Specific References
- ean13
- 7630043503065
-
Sewing Tutorial: Getting Started with the BERNINA B 500, B 535, B 540, B 570 QE and B 590 Machines
We will show you how to start your adventure with sewing with the fantastic machines BERNINA B 500, B 535, B 540, B 570 QE and B 590. Ready to discover the basics and master the techniques? To begin with, we will discuss how to properly prepare the machine for work. We will show you how to thread, prepare the feet and adjust the stitch parameters. These are the fundamental steps that will allow you to start sewing fully prepared. Next, well focus on the first stitch. In this video, well show you how to place fabric under the presser foot and start sewing for the first time. You will learn how to evenly guide the fabric while sewing and how to adjust the speed of the machine to your pace. We will also discover the basic stitches available on the BERNINA B 500, B 535, B 540, B 570 QE and B 590 machines. We will show you what effects you will get by choosing different stitches so that you can start creating your projects right away.
-
Sewing Tutorial: Master the Art of Quilting with the BERNINA B 535, B 540, B 570 QE and B 590 Machines
In todays tutorial we will try to introduce you to the secrets of quilting using the unique BERNINA B 535, B 540, B 570 QE and B 590 machines. Are you ready to discover this technique and master it at the highest level? Quilting is not only the art of creating unique textures, but also a way to enhance the beauty of a design. In the video we will show you how to set up your quilting machine, choose the right presser foot and adjust the stitch parameters. We will start by discussing the different types of quilting stitches available on the BERNINA B 535, B 540, B 570 QE and B 590 machines. We will show you what effects you will get by choosing different stitches and thread combinations. Then we will move on to the practical part of the tutorial. You will learn how to stabilize the fabric and guide it while quilting to achieve even and aesthetic results. You will see what machine movement techniques will help you achieve the highest precision.
-
Sewing Tutorial: Explore the BERNINA B 500, B 535, B 540, B 570 QE and B 590 On-Screen Functions
Take a fascinating journey through the on-screen functions of the BERNINA B 500, B 535, B 540, B 570 QE and B 590 machine models. Together we will discover which advanced technologies give you full control over the creative process. Well start by discussing the touchscreen that is at the heart of these machines. Youll learn how to navigate the various menus, adjust settings, and select features with intuitive gestures. Well move on to showcasing key on-screen features such as stitch selection, adjusting stitch parameters, programming stitch combinations, and more. You will also learn about the possibilities of creating and saving your own combinations, which will allow you to implement unique projects. Well show you how to use the built-in features such as automatic needle threading, thread tension adjustment, presser foot selection and much more. All this so that you can achieve perfect results in your projects.
-
Sewing Tutorial: Buttonholes with B 535, B 540, B 570 QE and B 590
We have prepared a tutorial for you, in which we will teach you step by step how to sew professional buttonholes using BERNINA B 535, B 540, B 570 QE and B 590 machines. Ready to learn new skills? Lets start by discussing the essential accessories and features available on these buttonhole sewing machines. You will learn how to properly prepare the machine for work and choose the right stitch and accessories. Next, well show you how to properly place a button under the presser foot and initiate the sewing process. Throughout the video, well focus on adjusting stitch parameters such as width and length to get the perfect buttonhole fit. We will be discussing various buttonhole sewing techniques that will give you a variety of results. We will show you what changes to make to get delicate and durable buttonholes that will perfectly suit your projects.
-
New BERNINA looper (series 7 sewing machines)
There is nothing more important than precision and efficiency in sewing, and the new BERNINA hook for Series 7 machines is the answer to these needs. This innovative mechanism allows for even more accurate and smoother sewing, and also offers solutions that simplify the operation of the machine and create beautiful designs. In our video we will show you how the new BERNINA hook works in practice. Well take a look at its benefits for different types of sewing, from simple stitches to more intricate embellishments. We will also discover what possibilities it provides for different materials, as well as how it affects the quality and durability of seams. If you are ready for a revolution in the world of sewing machines and want to discover how the new BERNINA looper raises the level of your projects, then click on the video. Get ready for a fascinating demonstration of innovation that will make your sewing even more precise, effective and satisfying.
-
Sewing Tutorial: Decorative Stitches on BERNINA B 535, B 540, B 570 QE and B 590 Machines
In this video, well focus on creating striking decorative stitches on the BERNINA B 535, B 540, B 570 QE and B 590 machines. Its a great way to add a unique touch and embellishment to your sewing projects. Throughout this video, well go over the variety of decorative stitches available on these machines. We will show you how to choose the right stitch for your project and how to adjust its length, width and other parameters. Well demonstrate how to work with different types of fabric to get the best results, and how to use sewing feet to help you work with each stitch. We also wont forget practical tips on thread tension, edge finishing and many other techniques that will help you achieve perfect results.
8 other products in the same category:
Bernina B735 embroidery machine.
20,598.00 zł
Bernina B590 embroidery machine.
18,998.00 zł
Product Review
-
Reviews (0)
-
Latest
@CUSTOMER_NAME@
@AUTHOR_PROFILE@ @COMMENT_ISO_COUNTRY@@COMMENT_TITLE@
@COMMENT_COMMENT@
