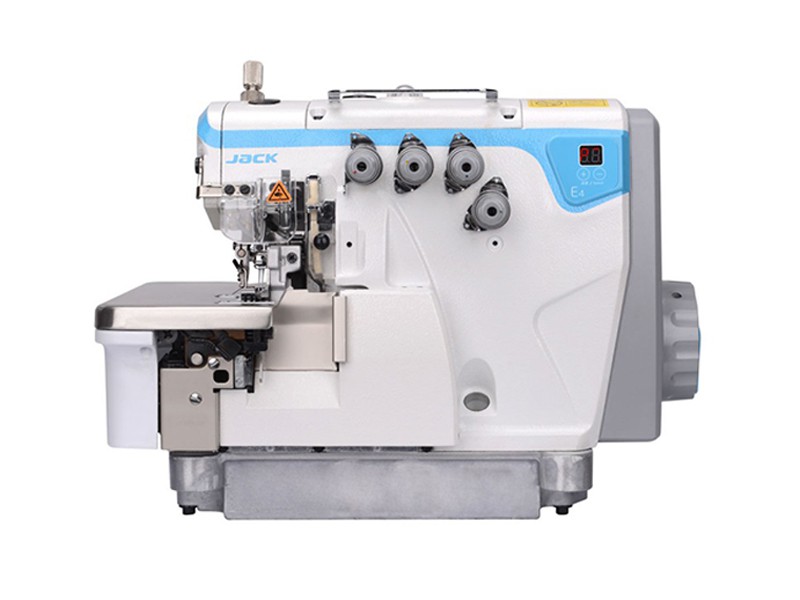

5-thread overlock machine JACK E4S-5-03/233

Jack JK-E4S-5 2-needle / 5-thread overlock machine for light and medium materials . Machine with differential transport , designed for professional tailoring. Dedicated to service points, tailor shops . It is equipped with needle positioning and LED work field lighting . The head has an energy-saving Direct Drive motor. It allows you to work at full, maximum speed of up to 5500 stitches per minute , it is quiet and reliable. The Jack E4S overlock has a lever for adjusting the height of the feed teeth, which adjusts the operation of the machine to the material being sewn. The lever can be set to sew light, medium and heavy fabrics. Overlock Jack has a simple control panel that allows you to adjust the sewing speed, control the positioning of the needle and the option to return to factory settings. Jack overlocks are designed and built with particular emphasis on durability. All of them have a modern construction, thanks to which they are stable and strong. The machine is ready to work!

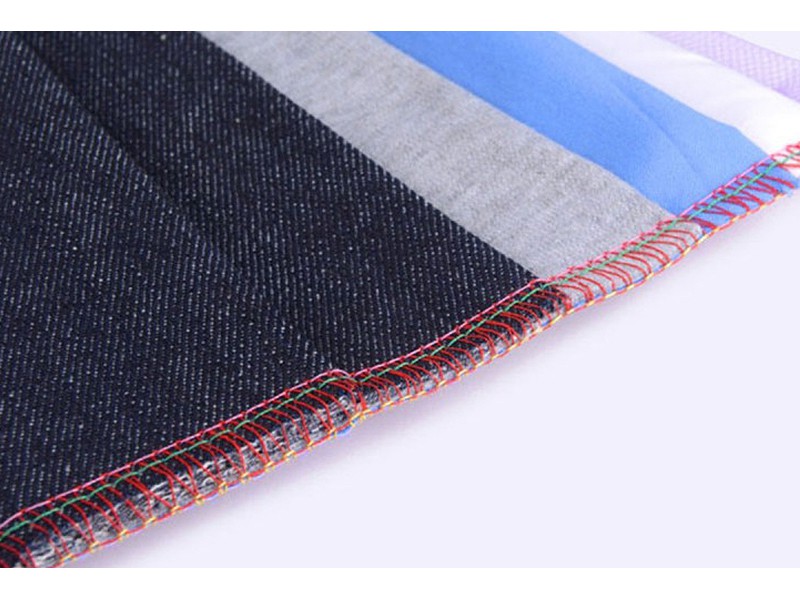

5-thread overlock stitch

Overlock Jack sews a 5-thread overlock stitch: performs a 3-thread overlock stitch (5mm) and a securing seaming stitch. After removing one needle, the overlock sews with a 3-thread hemming stitch with a width of 5mm. Total stitch width 8 or 10 mm (depending on the needle gauge)

Energy-saving AC Servo 230V

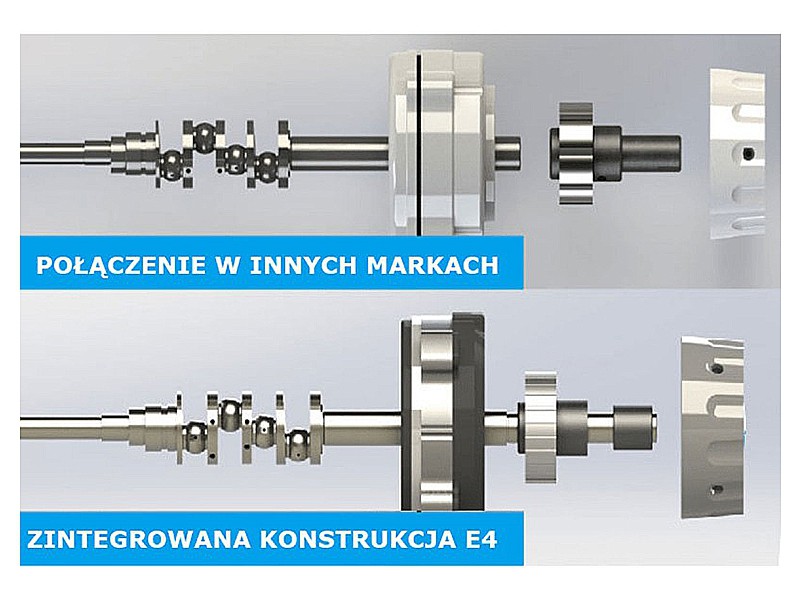

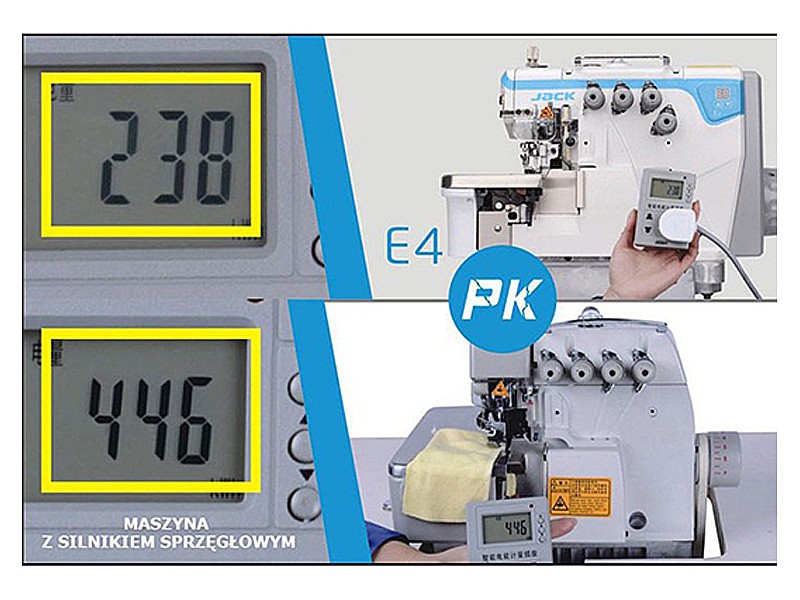

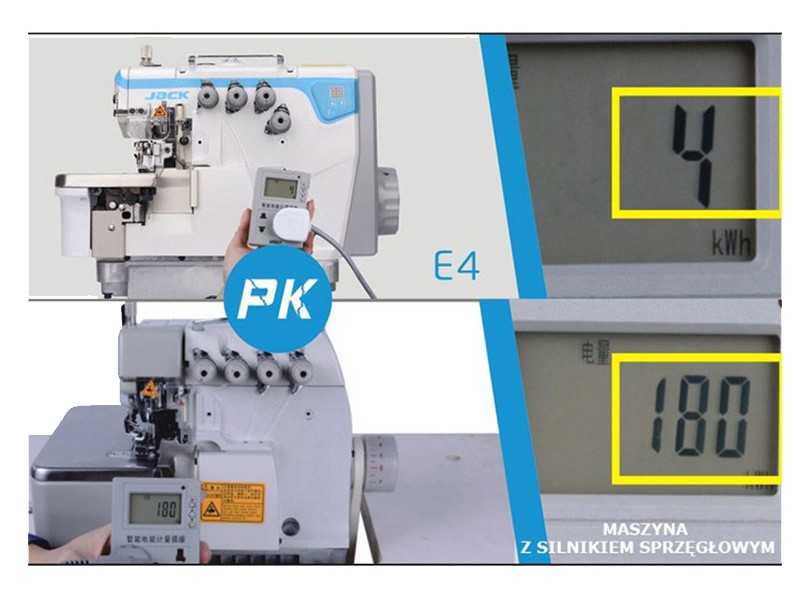

Brushless, it has many advantages over traditional motor. It has low friction, is quiet, has a long life cycle, is smaller and lighter. Dedicated to most sewing machines. The most important advantage is the low energy consumption (up to 71% less) compared to standard motors, the ability to easily adjust the speed and the use of a needle positioner. Built into the head of the machine - this technical solution (no suspended motor under the head of the sewing machine and drive belt) eliminates unwanted vibrations and increases the power of the machine.

Smart features

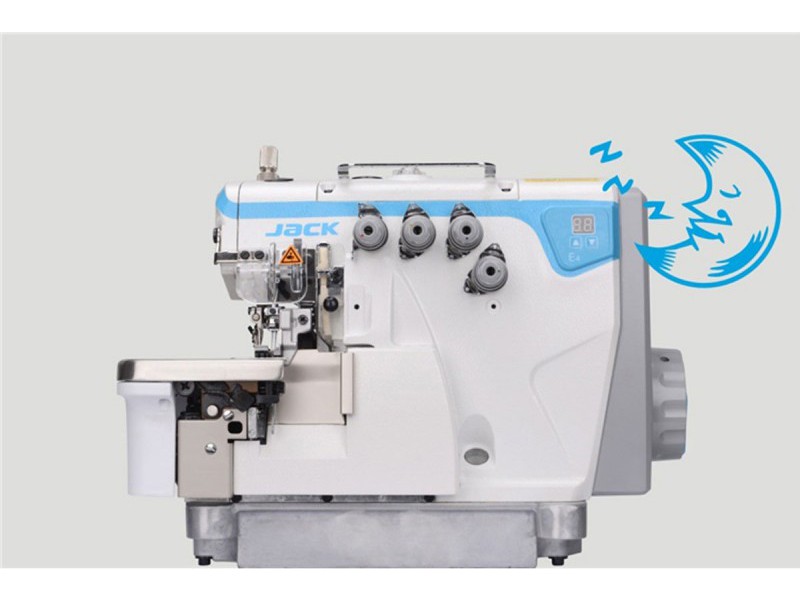

Overlock Jack has an integrated control panel with a display. It allows you to control automatic functions. E.g. speed and direction of motor rotation, positioning of the needle bar (up-down). It also has a sleep mode that shuts down the machine when idle.

For different types of materials

Jack overlocks of the E4S series can be used for sewing all types of fabrics and used for light, medium and heavy sewing - adjusting its operation to current needs is facilitated by placing the lever for adjusting the height of the teeth under the worktop. The lever can be set to one of three available levels: A (extra light), M (light to medium) and H (medium to heavy).

LED lighting

The machine has modern LED lighting, which is the closest to natural light and does not strain the eyes.

Modern cooling system

Thanks to the modern design, the engine cooling system is much better. Thanks to this, its lifespan is much longer.

Presser foot pressure adjustment

Overlock Jack has adjustable presser foot pressure, which increases the better movement of thin materials

Smooth regulation of stitch parameters

The machine has a smooth adjustment of the width of the throw width of 5 mm

High working speed

Overlock Jack works at high speed, up to 5500 punctures / minute.

The machine is complete for immediate operation

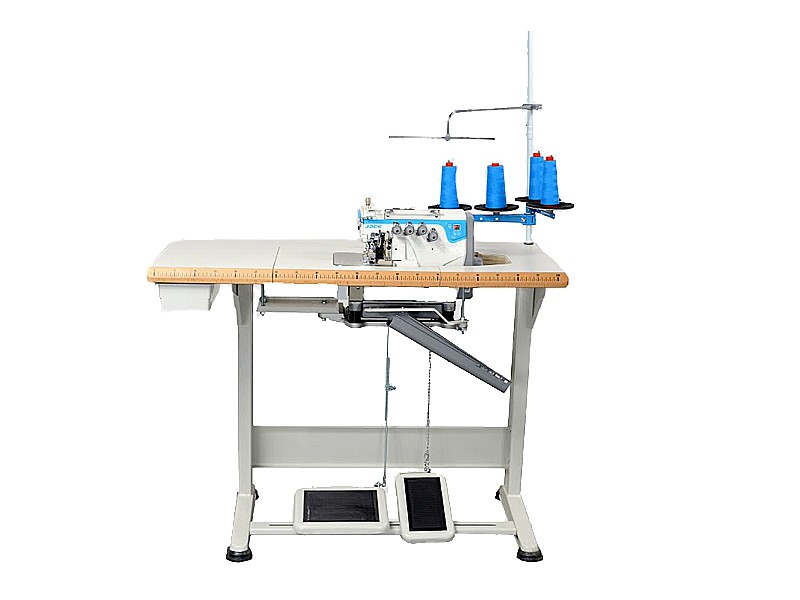

Machine complete with matching table

Technical Specifications:

- for sewing light and medium fabrics

- maximum sewing speed 5500 stitches/min

- gauge of needles 3 mm

- differential transport

- direct drive of the needle bar

- total overcast width 5 mm, stitch width 10 mm

- stitch length up to 3.8 mm

- built-in, energy-saving AC SERVO motor, voltage 220-240V,

- 70% energy saving

- quiet operation, minimized vibrations

- energy-saving LED work area lighting

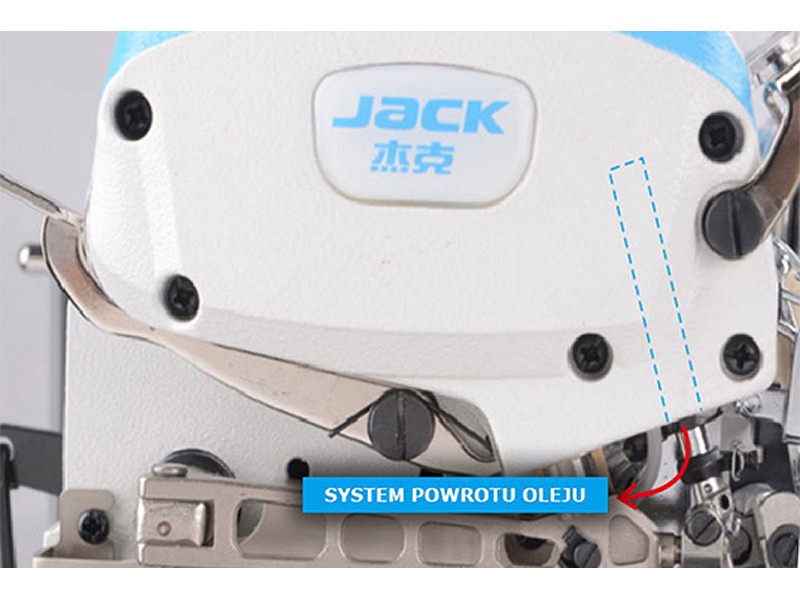

- central lubrication

- B-27 needle system
