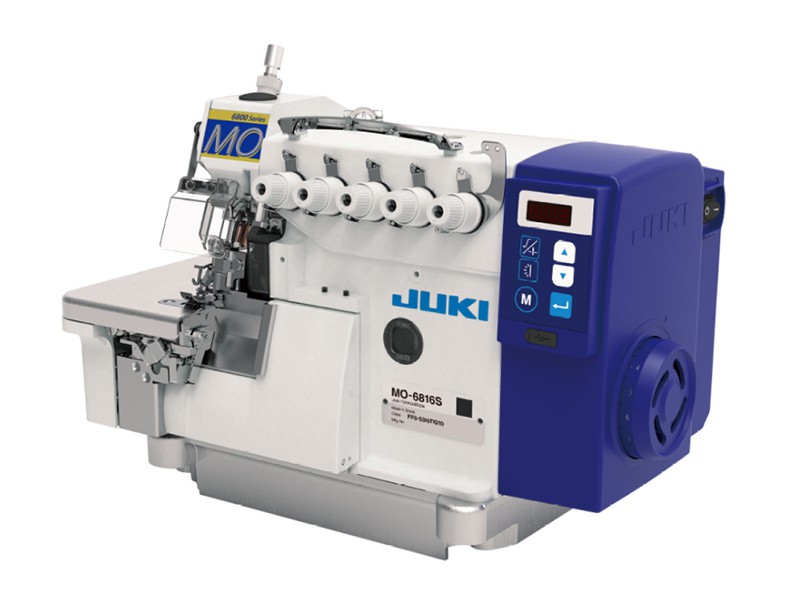

Juki MO6816S/DD10 5-threaded Direct Drive overlock machine

Juki MO6816S/DD10 is a professional 2-needle, 5-thread overlock machine designed for sewing light and medium fabrics. It is ideal for industry, service outlets and sewing shops. The machine is reliable and has a maximum sewing speed of up to 7,000 stitches per minute, a stitch length of up to 3.8 mm, a hemming width of 5 mm and a total stitch width of 8 mm. The foot rises to 5.5 mm. The machine is equipped with an energy-saving Direct Drive motor, which saves up to 70% energy compared to conventional motors. It works quietly thanks to the direct drive of the needle bar and the integration of the motor, control and drive in the machine head. The direct motor starts only when the operator is working, which saves energy and ensures quick start and high sensitivity to operator commands. The machine has a modern touch panel for easy access to settings, as well as built-in LED work area lighting with color selection. The overlocker also has a central lubrication system. The overlocker is a complete machine, adjusted and ready for immediate operation.

Choice of 5-thread and 3-thread stitches

The Juki overlock sewing machine sews with a wide 5-thread overlock stitch up to 8 mm and a 3-thread hemming stitch up to 5 mm.

Double differential transport

For perfect movement of materials, the use of double: bottom and top differential transport....

Central lubrication

The overlocker has central lubrication with an oil pan.

Energy-saving Direct Drive motor

Direct Drive motor built into the machine head is a technical solution eliminates unwanted vibrations, increases the power of the machine and enables precise sewing at higher speeds.

LED lighting

The machine has modern LED lighting, the closest to natural light and does not tire the eyes. Depending on individual preferences, we have a choice of one of 5 colors of light

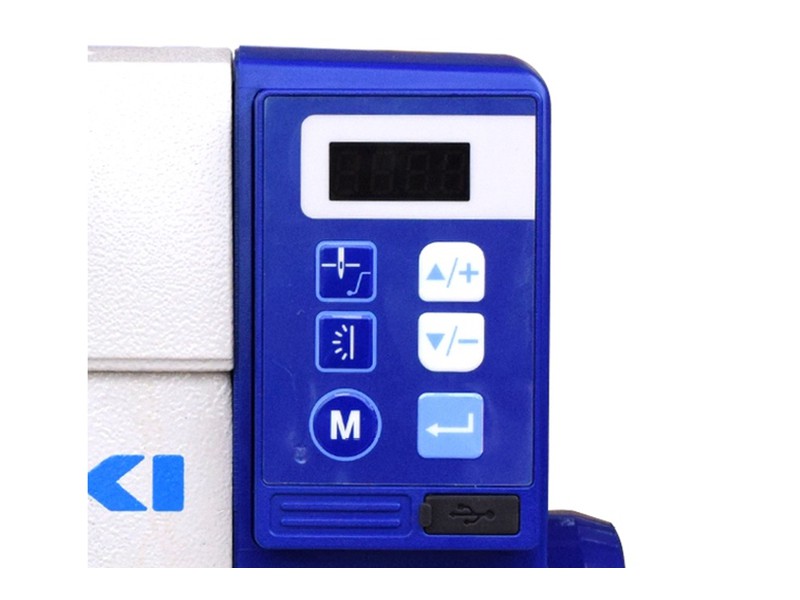

Control panel

Thanks to the modern touch panel, we can easily change the parameters of the overlocker: working speed, needle positioning, lighting of the working field.

Modern cooling system

Thanks to the modern design, the cooling system of the motor is much better. Thanks to this, its service life is definitely longer.

Adjustment of the foot pressure

Juki's 5-thread overlocker has adjustable foot presser, which increases the better movement of thin materials

Infinitely adjustable stitch parameters

The machine has a smooth adjustment of 8 mm or 10 mm width ( FF6 subclass) and stitch length up to 3.8 mm

High working speed

The Juki overlocker works at high speed, as many as 7000 stitches/minute.

Two USB ports

Juki overlocker is equipped with two USB ports. Thanks to them you can upload an upgrade and connect an external device such as a phone.

High quality overlocker base and top

The machine works on a very stable base with height adjustment. The tabletop is a top quality board made of 30 layers of birch plywood, so it absorbs the energy of the overlocker's work at high speed. The whole machine is stabile despite the high speed.

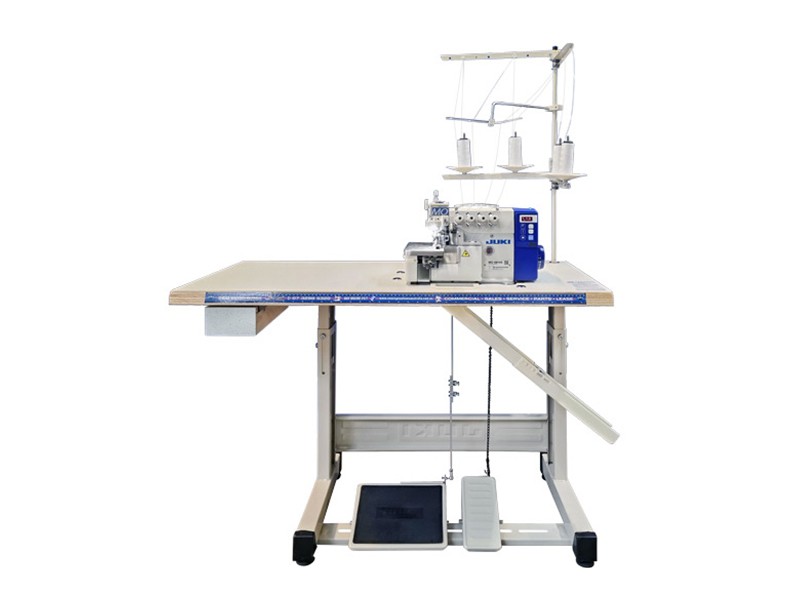

Machine complete for immediate operation

Machine complete with matching table, set to work.

Machine parameters:

- number of needles: 2

- number of threads: 5

- maximum speed: 7000 stitches per minute

- needle spacing:needle spacing 3 mm (subclass DE6) or 5 mm (subclass FF6)

- purpose: light and medium materials

- stitch width: total stitch width 8 mm or 10 mm respectively

- stitch length: 3.8 mm

- hemming width: 5 mm (up to the first needle)

- differential transport: 0.7 - 2

- foot lift height: up to 5.5 mm

- LED lighting: yes

- Direct Drive system: yes

- power supply: 230V

- needles: B27#14

The machine comes with a 2 year warranty for individuals or 1 year warranty for companies. door-to-door (door-to-door). This means that we pick up and deliver the machine directly to your place of residence free of charge.

Standard equipment of the machine:

- machine head with built-in energy-saving motor

- high quality table top

- table base with pedal

- drawer

- needles set

- vaseline oil

- screwdriver

- instruction manual

* The manufacturer reserves the right to change the equipment without prior notice.
