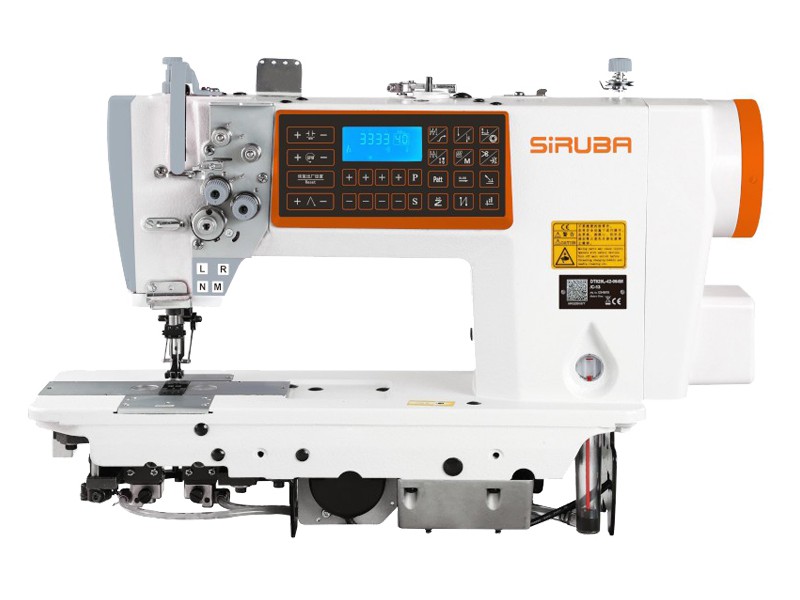

Sewing machine AUTOMAT 2-needle lockstitch machine SIRUBA DT828L-75-064H

The Siruba DT828L-75-064H series are extremely advanced 2-needle lockstitch machines with electronically switched needles that will surprise you with their automatic functions and double needle-and-cog feed. The machine in the version for heavy materials is a real support for specialists in the industry. Equipped with innovative solutions such as a powerful 750W Direct-Drive motor , these machines offer not only high performance, but also quiet and efficient operation. The DT828L is Siruba's first 2-needle machine with two stepper motors for even greater performance and efficiency, as well as quieter operation. For even more comfort, these lockstitch machines are equipped with powerful LED lighting that can be adjusted in three levels of light intensity. The heavy-duty sub-75 is equipped with large hooks that allow the use of double-capacity bobbins, which is especially important when sewing with thick threads. All this makes the Siruba series a reliable tool for every specialist in the industry. The machine is assembled and ready to work!

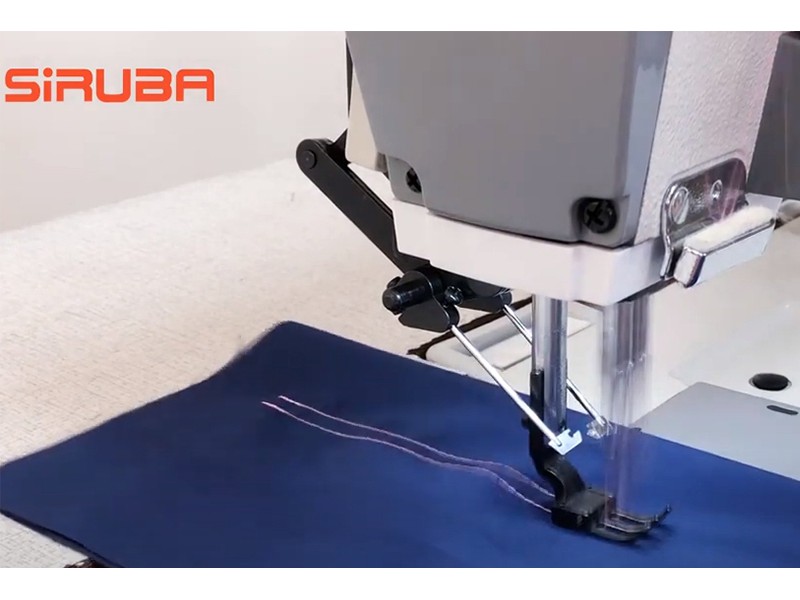

Double material transport controlled by two stepper motors

Double material transport - bottom tooth, walking needle - enables easy and smooth stitching of thick materials with difficult movement . DT828L is the first Siruba 2-needle machine equipped with two stepper motors that control material transport, thread trimming and presser foot lift. This solution works much quieter and more efficiently compared to the existing mechanisms controlled by electromagnets.

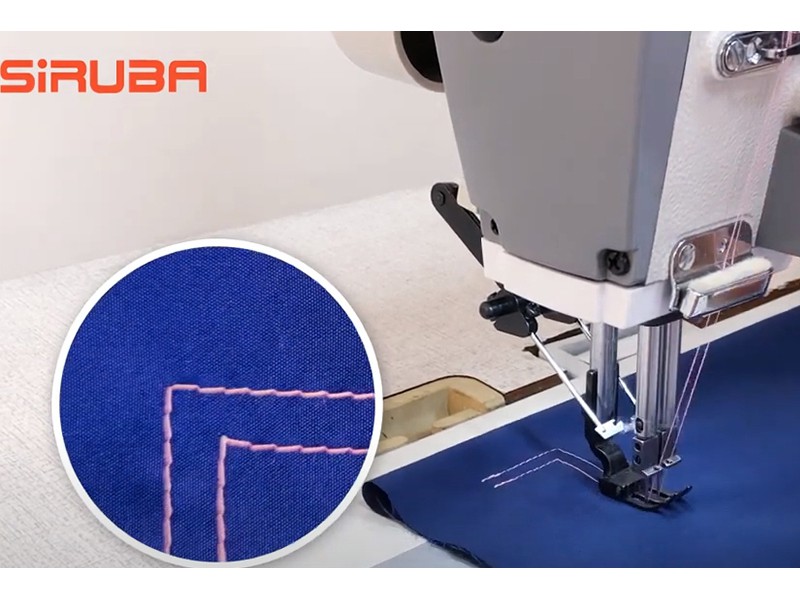

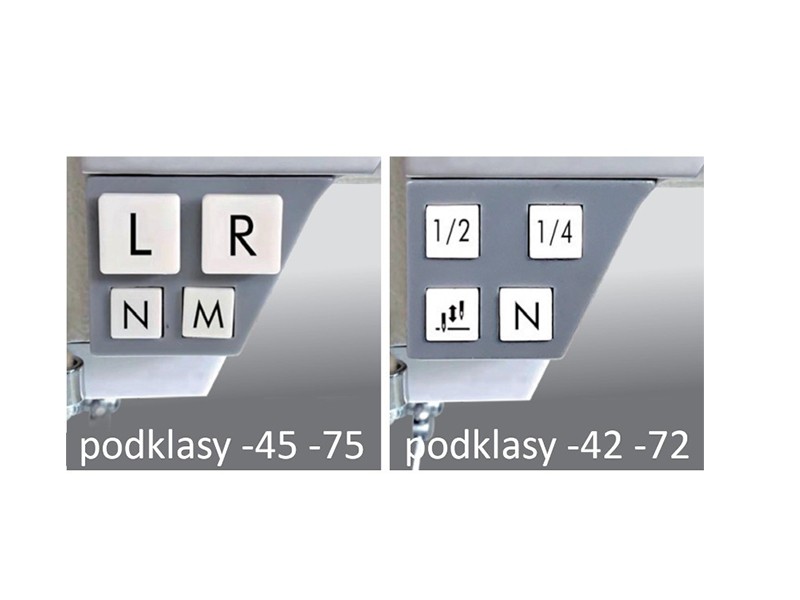

Electronically shut off needles

Turning off the needles is done by means of buttons located on the panel located next to the needle bar. When the needle bar is turned off, it turns on automatically, thanks to which we get a perfect hem in the corners. It is possible to program the corner angle.

Electronic stitch length adjustment

The use of electronic stitch length controlled by a stepper motor ensures perfect setting of sewing parameters, also during locking. It is also possible to obtain programmable decorative stitches.

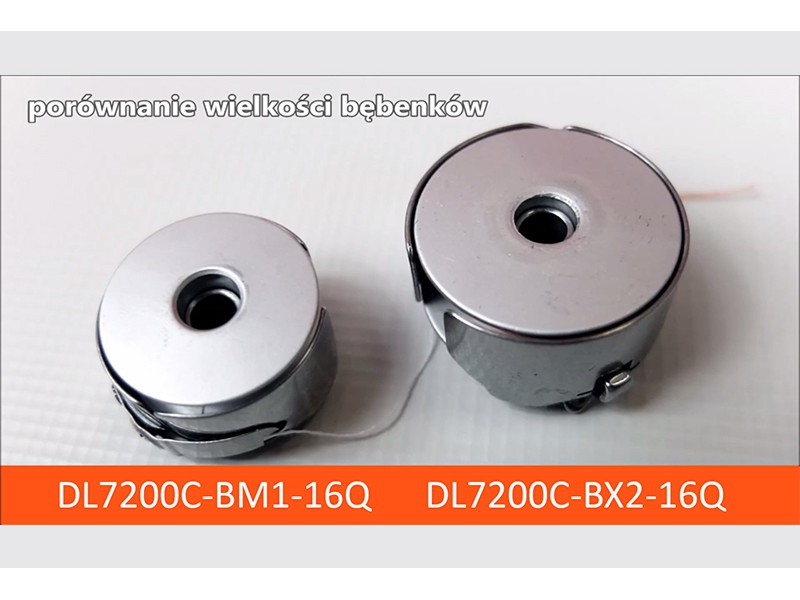

2 times bigger bobbins and hook

The DT828L-75-064H lockstitch machine uses 2 times larger bobbins and a hook. This increase in size reduces the frequency of bobbin thread replacement.

2-needle lockstitch machine

The machine has 2 needles with a spacing of 6.4 mm. It has the ability to turn off the needles.

Automatic thread trimmer

Siruba is equipped with two stepper motors that control material transport, thread trimming and presser foot lifting. This solution works much quieter and more efficiently compared to the existing mechanisms controlled by electromagnets.

Automatic needle positioning

Electronic needle positioning positions the needle to work.

Makes the start and end bartack

The use of electronic stitch length controlled by a stepper motor ensures perfect setting of sewing parameters, also during locking.

LED lighting

LED lighting is adjustable. There are three levels of light intensity.

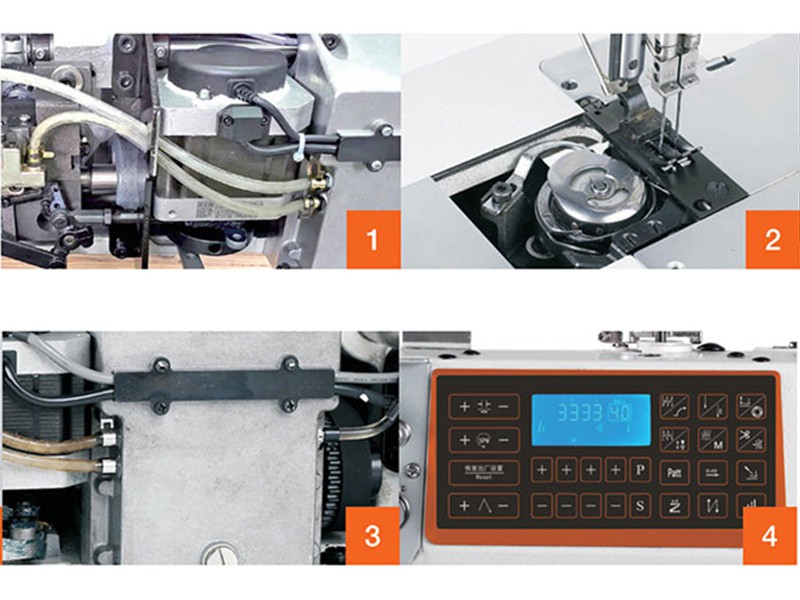

Control Panel

Control panel enabling easy and efficient control of automatic functions and setting stitch and sewing parameters.

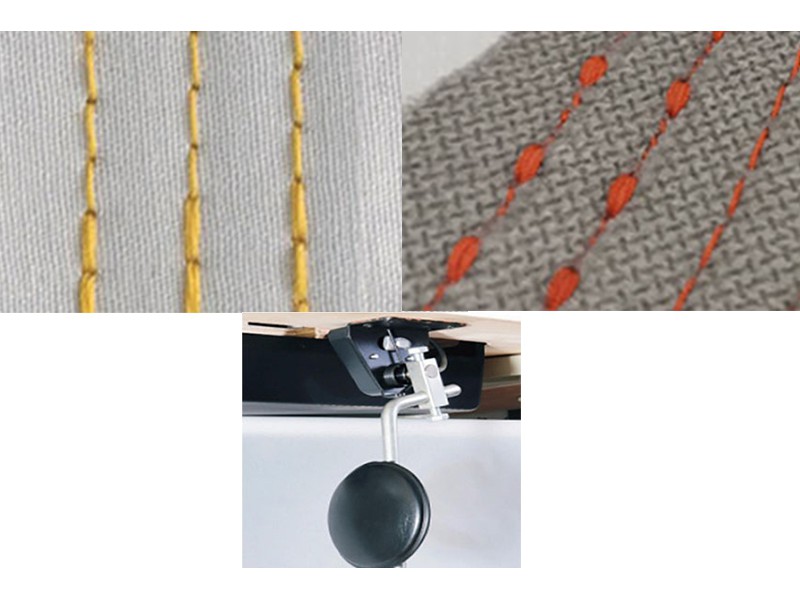

Decorative stitches

It is also possible to obtain programmable decorative stitches.

Lifting the presser foot with the knee lever

The electronic knee lever controls the stepper motor that raises the presser foot, so it does not require the use of a lot of force as in the case of mechanical knee socks. A special bi-directional stepping motor (patent) allows you to control thread trimming and presser foot lifting at the same time.

Energy-saving 750 Watt motor - mounted in the "Direct Drive" head

The drive is an energy-saving AC servo motor (230V) with needle positioning (up and down). Thanks to this construction, the machine works relatively quietly, stably and has a very high piercing force. The most important advantage is low energy consumption (up to 71% less) compared to standard motors. It works quietly and smoothly.

Closed lubrication circuit

The new built-in lubrication mechanism minimizes the risk of possible staining of materials during sewing.

Machine included

The machine is complete with a matching table, ready to work.

Machine Parameters:

- stitch length up to 7 mm,

- presser foot lifting height up to 12 mm

- operating speed up to 3000 punctures/min

- closed lubrication circuit

- DP X 5 needle system

- table top 105 x 55 cm

The machine is covered by a 2-year warranty for individuals or a 1-year warranty for companies. in the door-to-door system (from door to door). This means that we pick up and deliver the machine directly to your home free of charge

Standard equipment of the machine:

- machine head

- high quality table top

- table base with pedal

- drawer

- set of needles

- metal spool in the bobbin + 1 spare

- user manual

* The manufacturer reserves the right to change the equipment without prior notice.

We invite you to buy needles for sewing various materials, additional bobbins and feet for the machine. You will find everything in the "Accessories" category
