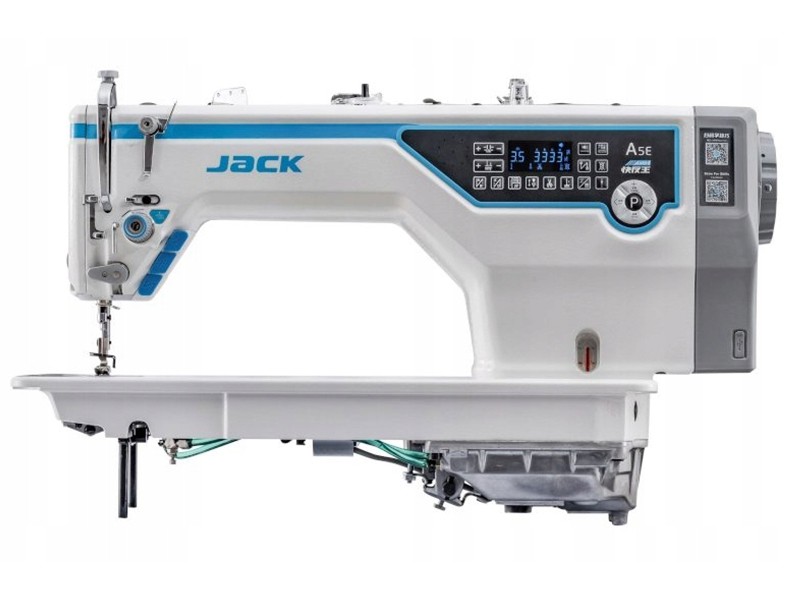

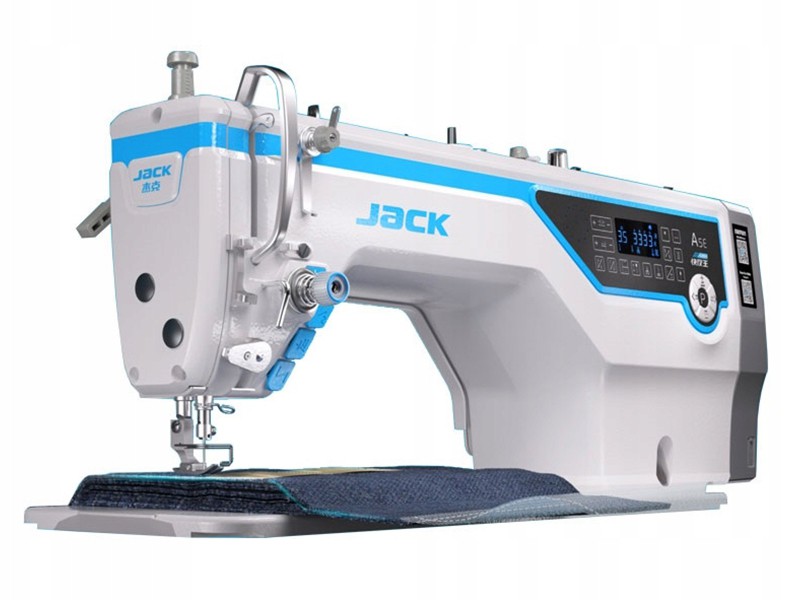

1-needle lockstitch machine JACK A5E-A

4,599.00 zł

3 739,02 zł Netto

The Latest Intelligent Automatic Lockstitch Machine - 30.5 cm Arm!

The Jack A5E-A lockstitch machine is a professional 1-needle lockstitch machine equipped with an artificial intelligence processor "Octopus Nine-brain". This is an intelligent solution that ensures automatic change of machine parameters to the thickness of the sewn material in real time. Automatic response to the change in the thickness of the sewn material and the combination of material feed parameters and needle insertion force in real time ensure stable sewing of various materials without the need to adjust the machine. The machine has automatic functions, lower tooth feed and an energy-saving motor built into the machine head (Direct Drive). The machine, like previous versions of the A5, is characterized by an elongated body - the distance from the needle to the body is 30.5 cm . The machine uses a stepper motor that controls the stitch length setting in the machine, as well as the one responsible for the locking function. Closed lubrication system (no typical oil pan). A small amount of oil in a closed circuit . This solution guarantees lower oil consumption and better lubrication of the mechanisms. The increased power motor with increased torque guarantees the right penetration force even when sewing thicker materials in multiple layers. The Jack A5E-A lockstitch machine has a thread cutting system that shortens the thread length after cutting to 3.5 mm. The lockstitch machine is a complete machine, adjusted and ready for immediate operation.

Buy on 0% installments - click on the selected button below to check installments in the calculator

help_outlineAsk about product
1-needle lockstitch machine JACK A5E-A

1-needle lockstitch machine JACK A5E-A

I accept privacy policy rules

The machine uses a stepper motor that controls the stitch length setting in the machine , as well as the locking function. The artificial intelligence chip "Octopus Nine-brain" is an intelligent solution that ensures automatic change of machine parameters in real time according to the thickness of the sewn material. Closed lubrication system (no typical oil pan). A small amount of oil in a closed circuit. This solution guarantees lower oil consumption and better lubrication of the mechanisms. The increased power engine with increased torque guarantees adequate penetration force even with multi-layer sewing of thicker materials. The Jack A5E-A lockstitch machine has a thread cutting system that shortens the thread length after cutting to 3.5 mm.

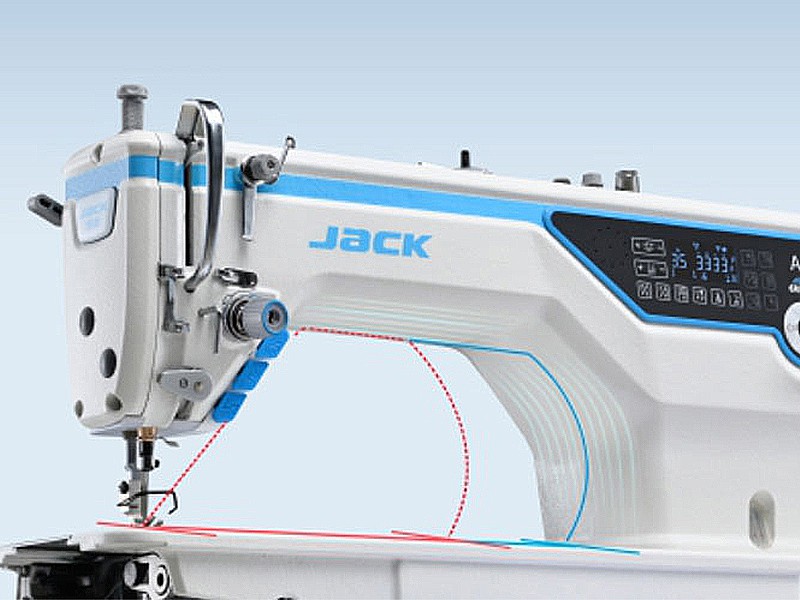

Extended machine body

The enlarged working area allows for sewing larger materials – the distance from the needle to the body is 30.5 cm.

"Octopus Nine-brain" processor

The Octopus Nine-brain artificial intelligence processor intelligently perceives and responds to changes in the thickness of the sewn material in real time.

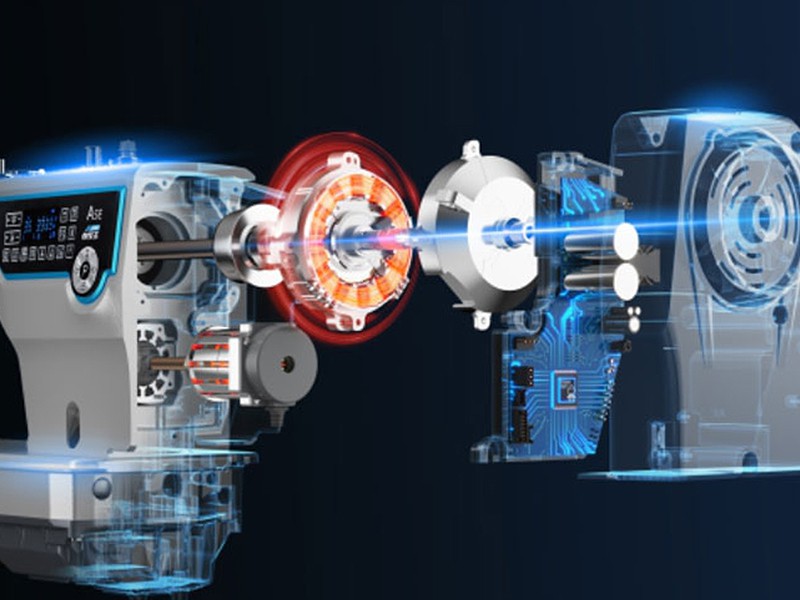

Energy-saving AC Servo 230V with increased power

Brushless, has many advantages over a traditional motor. It has low friction, is quiet, has a long life cycle, is smaller and lighter. Designed for most sewing machines. The most important advantage is low energy consumption (up to 71% less) compared to standard motors, the ability to easily adjust the speed and the use of a needle positioner. Built into the machine head - this technical solution (no suspended motor under the sewing machine head and drive belt) eliminates unwanted vibrations and increases the power of the machine.

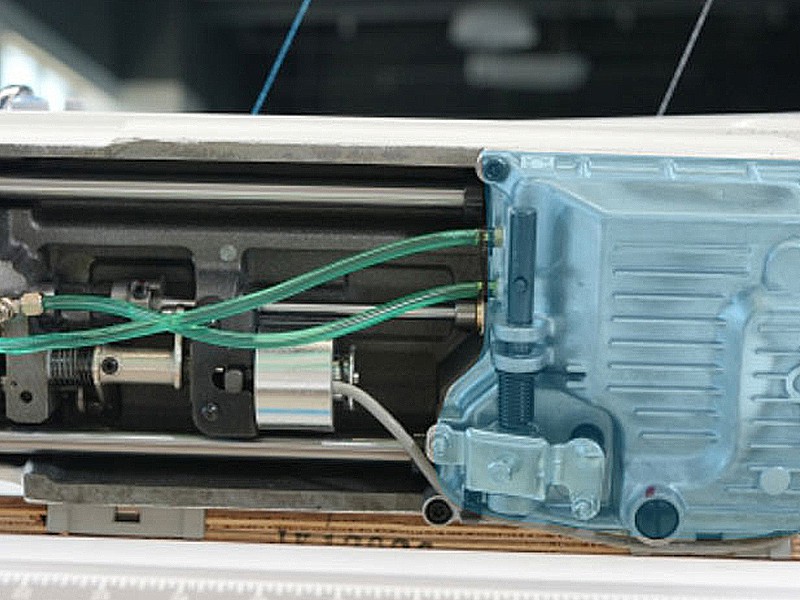

Closed lubrication system

This solution guarantees lower oil consumption and better lubrication of the machine mechanisms.

LED lighting

The machine has modern LED lighting, which is the closest to natural light and does not tire the eyes. This lighting is in the form of five LEDs with four-step adjustment. It is built into the machine head, and the light emitted by energy-saving and durable diodes perfectly illuminates the work area and eliminates the need to install additional lighting at the workstation.

New Automatic Thread Cutting System

The new generation thread cutting system allows you to obtain a thread length of up to 3.5 mm.

Automatic needle positioning

Electronic needle positioning sets the needle for work.

Makes the initial and final bolt

The Jack sewing machine locks and secures the stitch against unraveling at the beginning and end of the stitch.

Automatic presser foot lift

New, additional presser foot lifting height adjustment system in the range of 0 to 13 mm. It allows you to adjust the automatic presser foot lifting height to the thickness and fluffiness of the sewn fabrics. This significantly facilitates the maneuvering of the fabric under the presser foot.

Programming additional stitches

We can easily add and program a single stitch using a single button above the needle bar.

Control panel

We can easily set sewing parameters: speed, needle positioning with convenient buttons. Three function buttons located at the needle bar: 1/2 stitch length, adding a stitch, locking

USB port

USB port for connecting external devices.

Knee lever included

The machine has a comfortable knee lever.

The machine is ready to work

The machine is assembled, adjusted and ready to work.

Machine parameters:

- for light and medium materials

- bottom toothed transport

- voltage 220-240 V

- integrated, energy-saving AC Servo motor 550 W

- 70% energy savings

- automatic functions: thread cutting, foot lifting, locking (fastening) during sewing, needle positioning, sewing according to programmed sections

- integrated, energy-saving LED workspace lighting

- maximum sewing speed 5000 stitches/min

- stitch length up to 5 mm

- presser foot lift up to 13 mm

- central lubrication

- needle system 16x231 (DBx1)

- table top 105 x 55 cm

The machine is covered by a 2-year warranty for individuals or a 1-year warranty for companies. in the door-to-door system. This means that that we pick up and deliver the machine directly to your place of residence free of charge

Standard equipment of the machine:

- machine head

- high quality table top

- table base with pedal

- drawer

- DBx1 needle installed + spare set

- metal bobbin in the bobbin case + 1 spare

- user manual

* The manufacturer reserves the right to change equipment without prior notice.

We invite you to buy sewing needles for various materials, additional bobbins and machine feet. You can find everything in the "Accessories" category

Description of the above product is protected by copyright. Their use requires the permission of the copyright owner. Downloading the content of the above description without the consent of Wiking Polska Sp. z o.o. based in Krakow constitutes an act of unfair competition in the light of the ACT of April 16, 1993 "on combating unfair competition".

JACKA5E-A
21 Items

Data sheet

Automatic thread trimmer
Yes
Stitch length adjustment
from 1.2 -5.0 mm
sewing speed
5000 injections/min
Central lubrication
sump
Needle system
16x231 (DBX1)
Presser foot lift height
up to 13 mm
Automatic needle positioning
Yes
Automatic presser foot lift
Yes
Automatic locking
starting and ending bolt
2-needle lockstitch machine
NO
1-needle lockstitch machine
Yes
Destiny
for light and medium materials
Material transport
Bottom feed with tines
