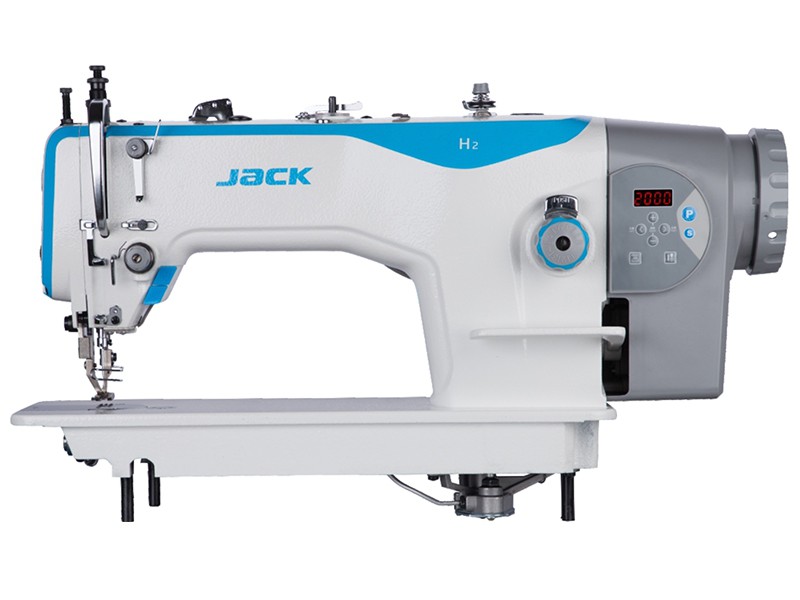

Sewing machine Jack H2-CZ 1-needle lockstitch machine

1-needle lockstitch machine designed for sewing thicker materials (e.g. leather, upholstery materials), with double transport (lower tooth and upper - walking foot) ensuring perfect movement of the upper and lower layers of the sewn materials. Equipped with an energy-saving motor built directly into the machine head (Direct Drive system ), which guarantees quiet operation and low electricity consumption. The machine also has a needle positioning function. The machine has a clear operating panel built into the head and LED backlight at the needle bar. The machine is assembled and ready to work.

Designed for heavy materials

Excellent transport, 750W motor, extremely powerful for heavy materials, staples up to 10 layers of thin to medium leather with excellent results.

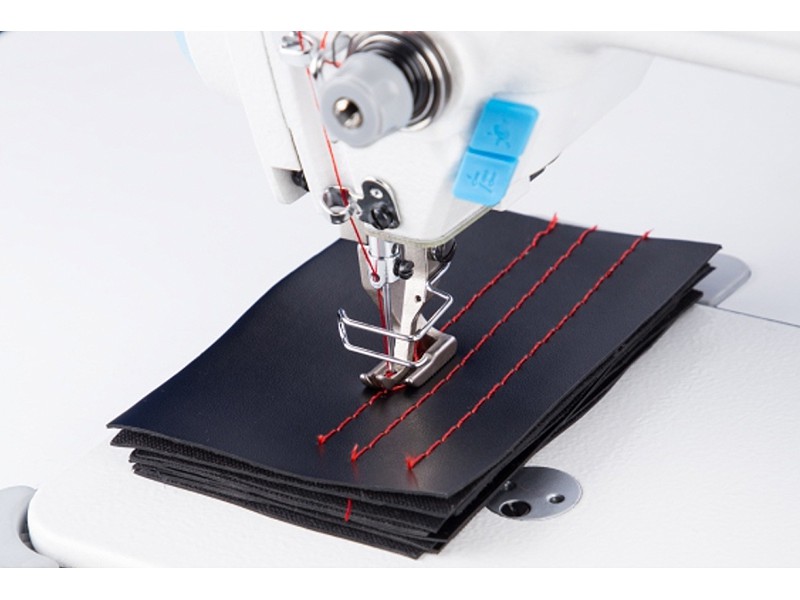

Double transport - tooth and walking foot

The machine has a modern, double transport, lower teeth and an upper walking foot. It guarantees perfect sliding of even the most demanding materials.

Needle positioning

Electronic needle positioning positions the needle to work.

Control panel

We can easily set sewing parameters: speed, needle positioning with convenient buttons.

Energy-saving AC Servo 230V

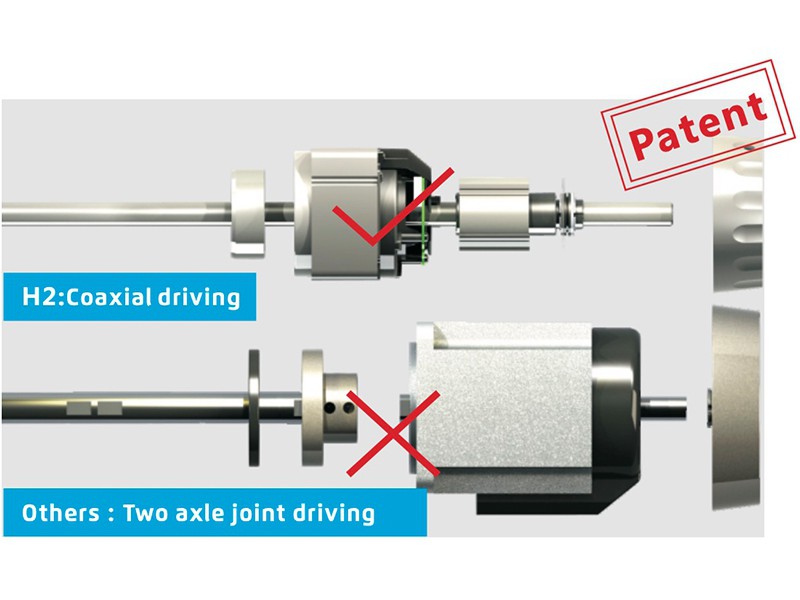

Brushless, it has many advantages over traditional motor. It has low friction, is quiet, has a long life cycle, is smaller and lighter. Dedicated to most sewing machines. The most important advantage is the low energy consumption (up to 71% less) compared to standard motors, the ability to easily adjust the speed and the use of a needle positioner. Built into the head of the machine - this technical solution (no suspended motor under the head of the sewing machine and drive belt) eliminates unwanted vibrations and increases the power of the machine.

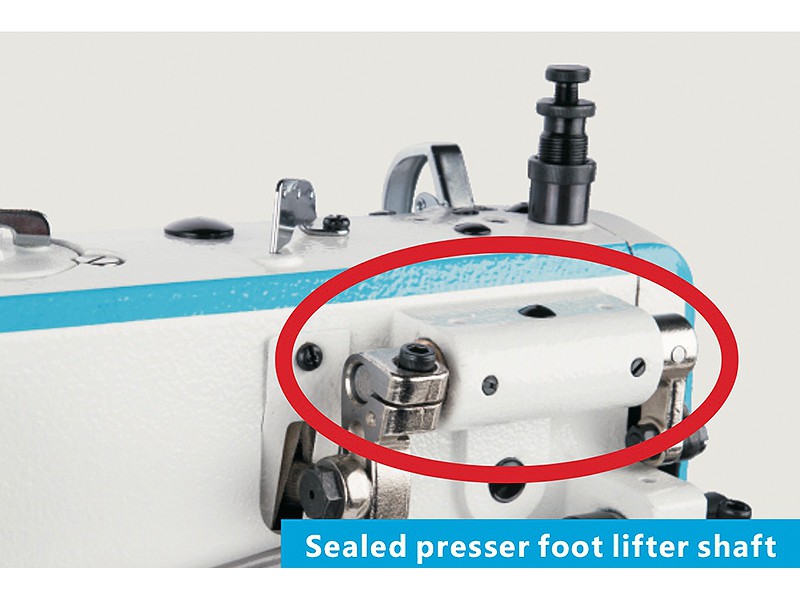

Presser foot pressure adjustment

The presser foot has a manually adjustable pressure.

LED lighting

The machine has modern LED lighting, which is the closest to natural light and does not strain the eyes. It is lighting in the form of five LEDs with three-level adjustment. It is built into the head of the machine, and the light emitted by energy-saving and durable diodes perfectly illuminates the work area and eliminates the need to install additional lighting at the workplace.

Knee lever included

The machine has a comfortable knee lever.

Central lubrication system and additional lubrication of the presser bar

The lockstitch machine has a central lubrication system with an oil pan. Thanks to this, more precise lubrication of the machine mechanisms is ensured. The presser foot bar is lubricated with solid grease, which eliminates possible oil stains on the material.

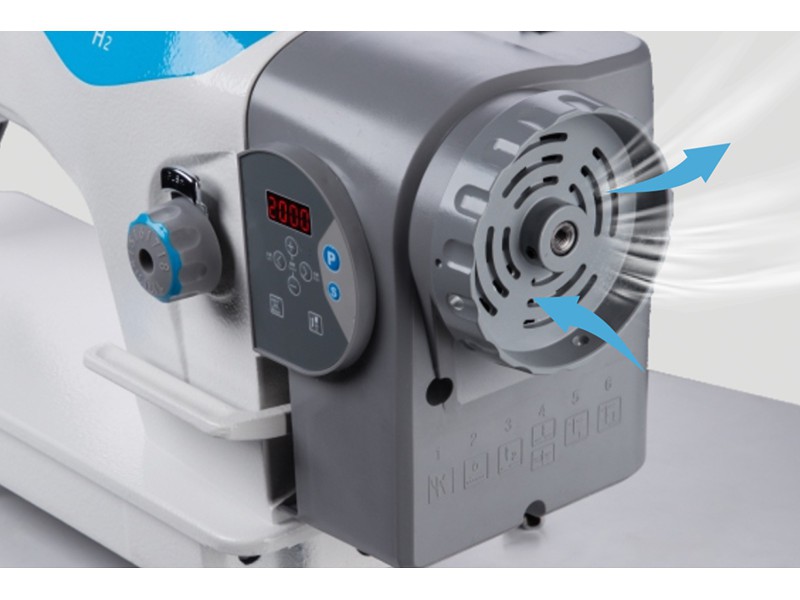

More efficient engine cooling

Special cooling design with a fan ensures effective heat dissipation and longer machine life.

The machine is ready to work

The machine is assembled, adjusted and ready to work.

Machine Parameters:

- for sewing heavy materials

- bottom feed and walking foot

- voltage 220-240V

- integrated, energy-saving AC Servo 750 W motor

- 70% energy saving

- automatic needle positioning functions,

- integrated, energy-saving LED work area lighting

- maximum sewing speed 2000 stitches/min

- stitch length up to 8 mm

- presser foot lift up to 8 mm or 16 mm at the knee lever

- central lubrication plus solid lubricant

- needle system 135x17 (DBx17) | NM 125 - 160 (20-23#)

- table top 105 x 55 cm

The machine is covered by a 2-year warranty for individuals or a 1-year warranty for companies. in the door-to-door system (from door to door). This means that we pick up and deliver the machine directly to your home free of charge

Standard equipment of the machine:

- machine head

- high quality table top

- table base with pedal

- drawer

- DBx1 needle mounted + spare set

- metal spool in the bobbin + 1 spare

- user manual

* The manufacturer reserves the right to change the equipment without prior notice.
