Sewing machine 1-needle Jack A4F-H lockstitch machine

4,099.00 zł

3 332,52 zł Netto

Innovative automatic 1-needle Jack A4F-H lockstitch for medium and heavy materials. Equipped with an integrated energy-saving motor mounted in the head, directly on the main shaft of the machine ( DIRECT DRIVE system), which guarantees quiet and reliable operation and lower electricity consumption. So there is no V-belt, the machine works without vibration and noise. The machine uses a stepper motor which controls the setting of the stitch length and is responsible for locking. In this way, the noise level during locking is reduced, and the stitch length setting is precise (accuracy up to 0.1 mm). The machine has a number of automatic functions (thread cutting, needle positioning, programmed start and end bartack, automatic foot lifting, electronic thread tension system).

help_outlineAsk about product
Sewing machine 1-needle Jack A4F-H lockstitch machine

Sewing machine 1-needle Jack A4F-H lockstitch machine

I accept privacy policy rules

Buy on 0% installments - click on the selected button below to check installments in the calculator

Professional lockstitch machine with bottom feed, designed for medium and heavy materials. Jack A4F-H is a complete machine ready for immediate operation. The A4F lockstitch machine is equipped with a number of automatic functions (thread trimming, needle positioning, programmed start and end bartack, automatic foot lifting, electronic thread tension system), which significantly improve the comfort of use and ensure optimal conditions for high-level work. Jack A4F-H lockstitch machine, compared to other automatic lockstitch machines, is additionally equipped with a stepper motor controlling the stitch length, which allows you to electronically determine the length with an accuracy of 0.1 mm! The A4F jack also has the function of stitch section programming, which allows you to obtain effective decorative stitches. It has the ability to remember decorative sewing patterns, which can be individually configured from the panel. The use of these stitches does not have to be purely decorative! Stitches made by Jack A4F-H are also reinforced patterns, significantly improving the strength of sewing - suggested use is, for example, sewing technical fabrics exposed to high stitch loads - sewing sails, tents, technical or work clothing. Jack lockstitch machines of the A4F-H series are the successor of the proven and appreciated by users the Jack A4 model. A4, like its predecessor, has PL voice notifications. The A4F-HQ jack has shorter and more accurate thread trimming. The sewing machine has an energy-saving AC SERVO motor (Direct Drive system) built into the head, which ensures quiet and reliable operation, and its modern design allows for better ventilation of the motor, which translates into a longer machine life. The lockstitch machine also has an improved structure of the transport and material clamping system, which provides a greater range of sewn material thicknesses.

Automatic thread cutting

We cut the threads quickly and easily. Completely automatically, great comfort to work with.

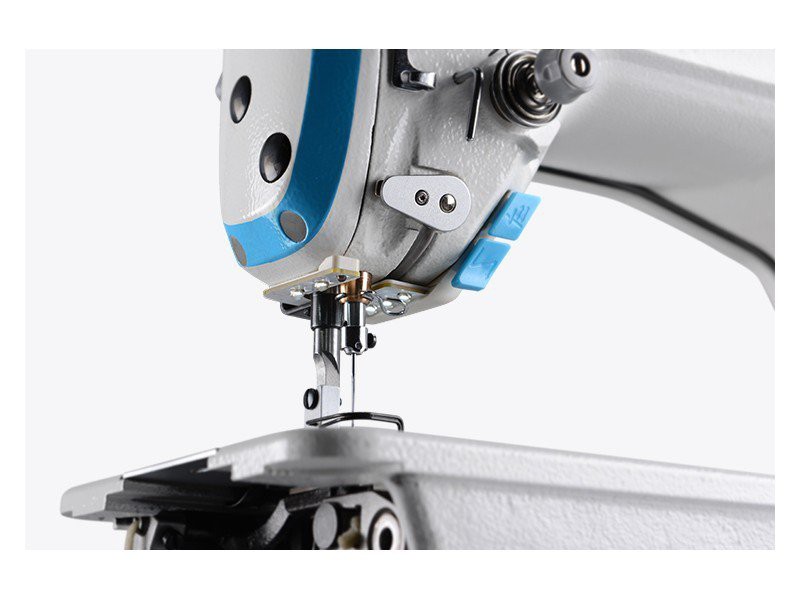

Needle positioning

Electronic needle positioning aligns the needle to the job.

Makes a bartack. start and end

The Jack sewing machine locks and secures the stitch against unraveling at the beginning and end of the stitch.

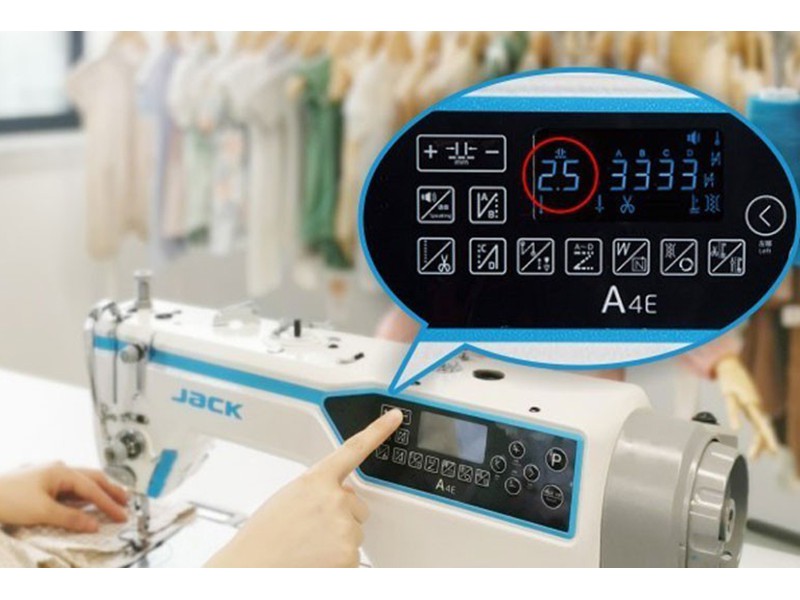

Programming sewing parameters

We can easily program the sewing parameters with convenient buttons.

LED lighting

The machine has modern LED lighting, closest to natural light and does not tire the eyes.

Modern cooling system

Thanks to the modern design, the engine cooling system is much better. Thanks to this, its service life is much longer.

Talking machine

The machine gives us verbal instructions, it just talks to us!

Additional function buttons

Very conveniently placed additional function buttons in a perfect place.

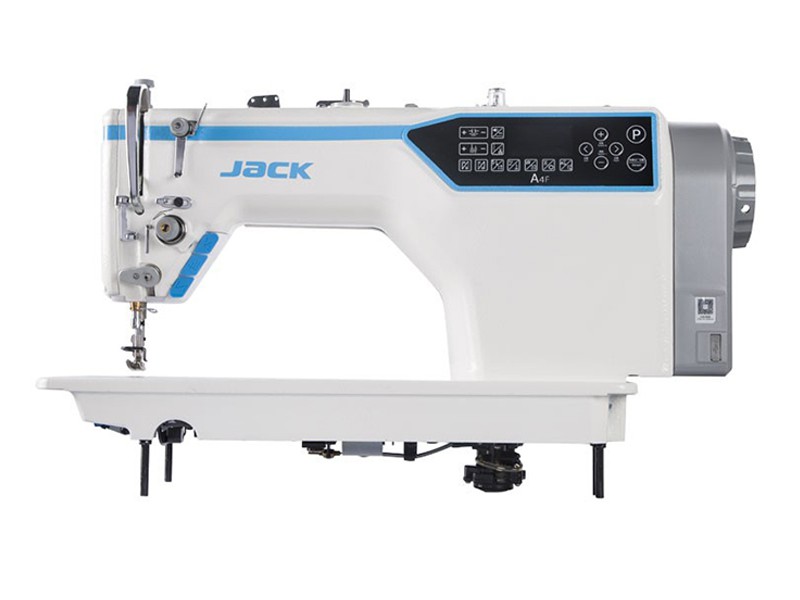

Machine included

Machine complete with matching table.

Description of the above product is protected by copyright. Their use requires the permission of the copyright owner. Downloading the content of the above description without the consent of Wiking Polska Sp. z o.o. based in Krakow constitutes an act of unfair competition in the light of the ACT of April 16, 1993 "on combating unfair competition".

Jck-A4FH
8 Items

Data sheet

Automatic thread trimmer
Yes
Stitch length adjustment
from 1.2 -5.0 mm
sewing speed
3500 injections/min
Central lubrication
sump
Needle system
135x5 (DPx5)
Presser foot lift height
5-12mm
Automatic needle positioning
Yes
Automatic presser foot lift
Yes
Automatic locking
starting and ending bolt
2-needle lockstitch machine
NO
1-needle lockstitch machine
Yes
Destiny
for medium and heavy materials
Material transport
Bottom feed with tines
