Embroidery machine Ricoma CHT2-1204


109 755,28 zł netto

Najniższa cena od 30 dni: 134 999,00 zł

Tax included 1 dzień

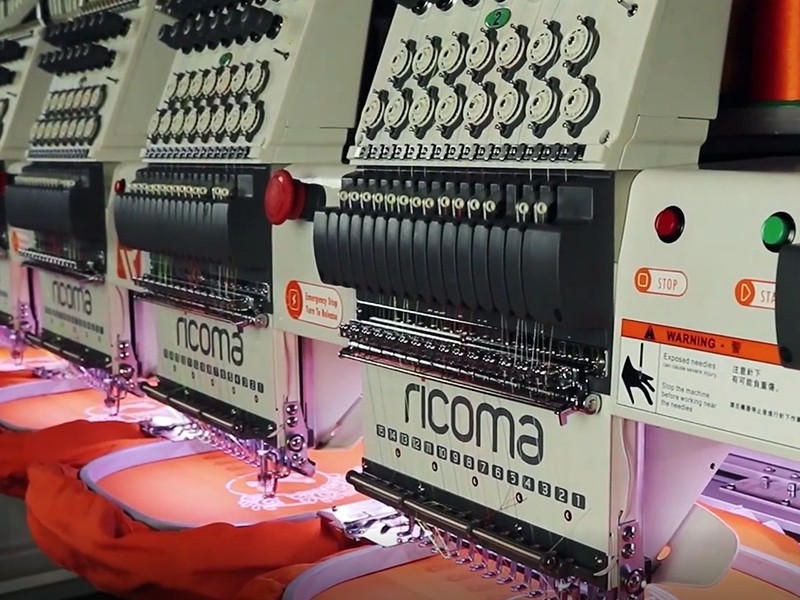

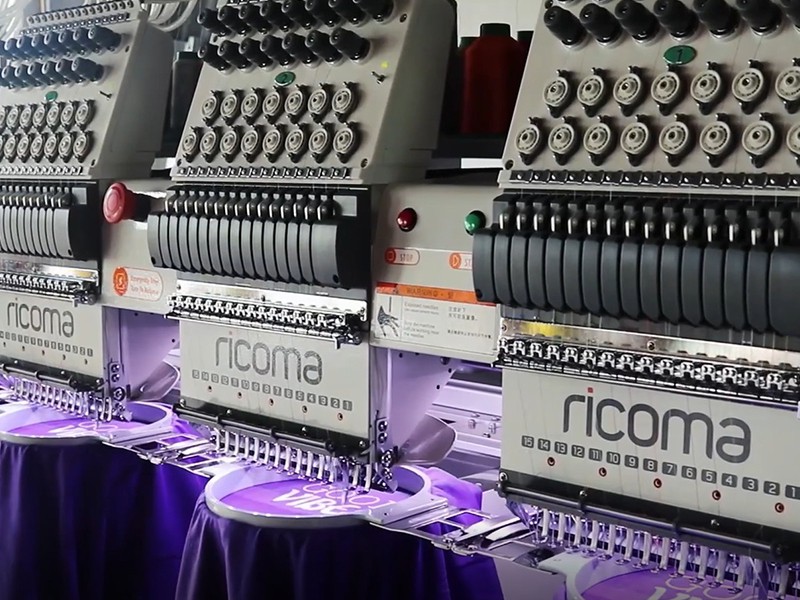

Ricoma CHT2-1204 4-head industrial embroidery machine - designed in the USA. Device designed for intensive use.

Industrial Ricoma CHT2-1204 embroidery machine impresses with its efficiency and reliability. Its advantages are primarily noticed by the owners of plants where the devices are subjected to extremely intensive use. It offers a working speed of up to 1000 stitches per minute. It is especially suitable for a multi-shift system, as it is not afraid of continuous operation. The high-quality machine has 4 heads with automatic thread changer of 12 colors which performs this treatment in the blink of an eye. The industrial embroidery machine CHT2-1204 has a double-thick load-bearing frame thanks to it is stable and reduces vibrations. The machine embroiders flat surfaces, caps and ready garments. We invite you to familiarize yourself with the Polish website of Ricoma. See more - link > >

Description of the above product is protected by copyright. Their use requires the permission of the copyright owner. Downloading the content of the above description without the consent of Wiking Polska Sp. z o.o. based in Krakow constitutes an act of unfair competition in the light of the ACT of April 16, 1993 "on combating unfair competition".

Dostępna na zamówienie! Prosimy o kontakt.

Buy on 0% installments - click on the button below to check the installments in the calculator

Learn about the government program "First Business - Support at the Start"

Automatic 12-color changer

Four heads, 12 needles.

Huge embroidery field

Maximum hoop size, up to 400 X 450 mm (optional model with a maximum hoop size of 500 x 450 mm). The new hoop positioning plate makes it easy to change the hoops.

Double beam to increase machine stability and reduce vibrations

Reinforced beam machine, the weight of the machine is 650 kg.

Dual Belt System

Dual Drive Belt System for higher torque, less noise and easier maintenance .

Reinforced square guide rails

Reinforced square guide rails for greater impact resistance and durability.

Factory fitted leveling feet

Factory fitted leveling feet for easy transport and installation.

Comfortable LED lighting

Ricoma has equipped the embroidery machine with a dual LED lighting system.

Automatic thread cutter

Automatic thread cutter.

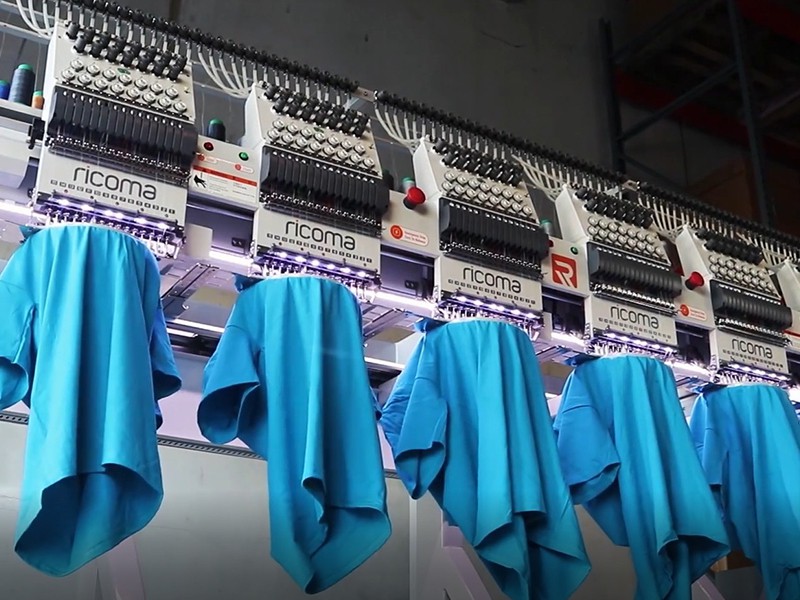

Embroider flat surfaces, caps and ready-made garments.

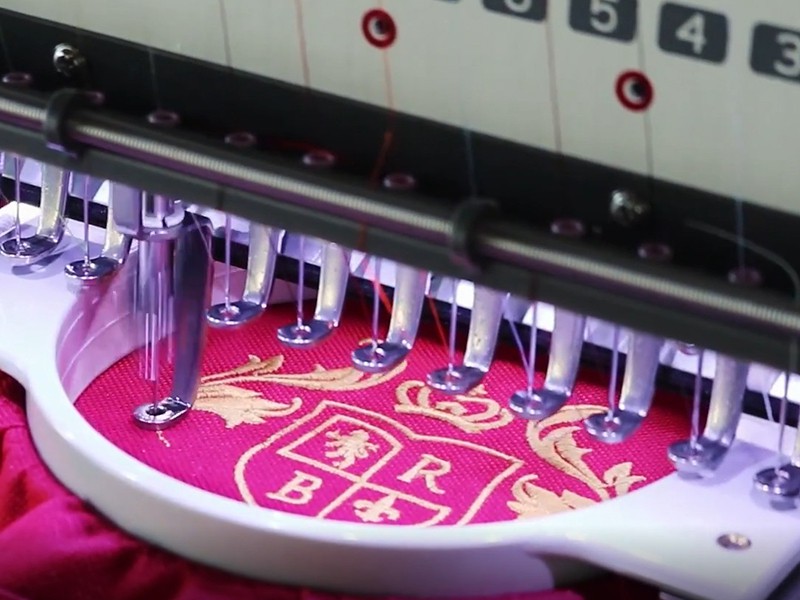

Laser for needle positioning

The laser shows where the needle is inserted in real time and allows for perfect positioning no pattern.

Ricoma Inspire Design Program

Ricoma embroidery design software. Link-Check out the Ricoma Inspire

High speed

Maximum speed is 1000 stabs per minute!

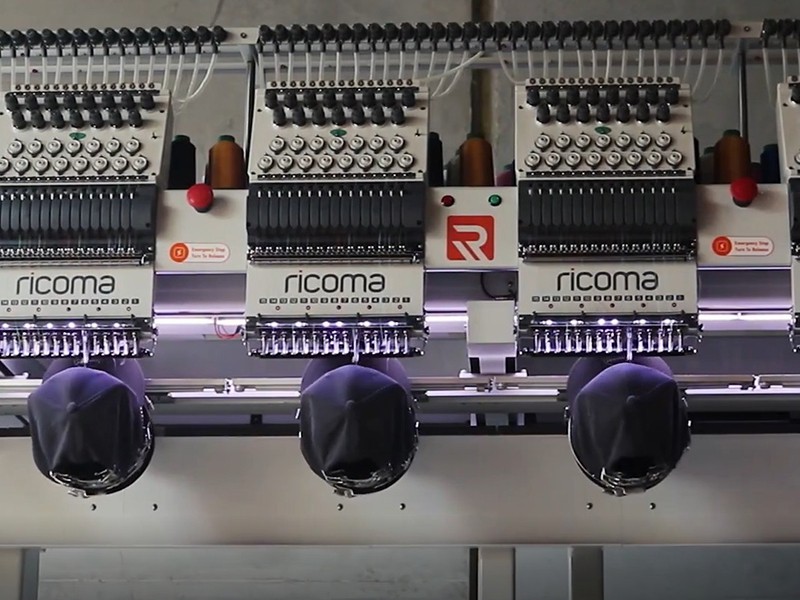

Universal cap attachment

Attachments for embroidering caps with a rotation angle of 270 degrees in 400 x 450 mm tabs, or a rotation angle of 215 degrees in 500 x 450 hoops mm.

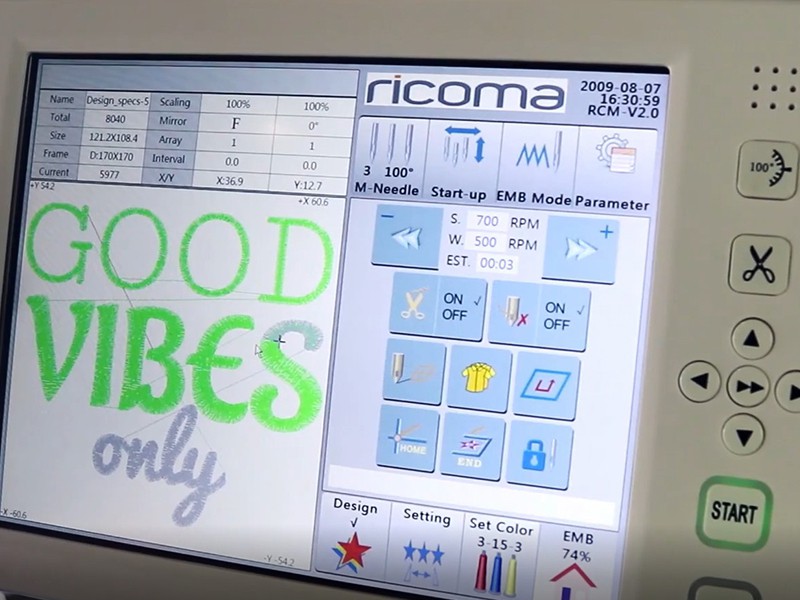

Large 10.4 inch Operation Panel

The embroidery machine is equipped with a 10.4 inch color touchscreen display showing the actual number of stitches of the HD True Color needle.

Newly developed small arm for sewing high-quality embroidery

The machine has a newly developed small arm for sewing high-quality embroidery on caps and small items.

Easy operation

The embroidery machine has a user-friendly panel interface. Easy to operate. It is easy to apply, add sequins, tape. We can easily change the parameters of the available hoops or thread colors. Display panel visible at large angles and simultaneously adjustable in many directions.

Convenient USB port

The machine has a port USB.

The best looper.

Ricoma is equipped with a special, fast Japanese Koban Hook hook.

Thread break sensor.

The Ricoma embroidery machine has a thread break sensor that stops the machine operation.

Emergency STOP

The machine has an immediate, emergency stopping system for the embroidery machine.

Extensive accessories

New sensational optional attachments allowing for embroidering scarves, ties, shoes and other hard-to-hoop things! Their assembly to the embroidery machine is very easy.

Solid table structure

Very strong and stable table structure. Despite its weight, about 90 kg it is easy to maneuver.

Pattern memory

We can save 50 million stitches or 200 embroideries.

Multiple file format support

The machine can read multiple file formats including DST, DSB and others .

Multiple transfer options

You can send embroidery to the machine via cable from PC, wi-fi or key USB.

Connect to wi-fi

Easy internet and wi-fi connection.

Initial contour of the embroidery field

The machine makes a preliminary contour of the embroidery to prevent shaft displacement.

Economical motor

150W servo motor for low power consumption.

Working with different voltages

The embroidery machine works with 220V (50 Hz) and 110V (60 Hz).

Modern stepper motors

The newest DC36V stepper motor with low vibration and low noise is used.

Easy equipment assembly

It is easy to attach accessories for embroidering applications, tapes or sewing sequins.

Manual thread color change function

You can manually thread color changes from 172 to 196 degrees.

Emergency button "STOP"

Convenient, large emergency button "STOP"

Machine dimensions

Machine dimensions: 2700 mm W - 1230 mm W - 1600 mm H . The narrow width of the machine allows easy entry through standard sizes !

Hoops and attachments for caps:

Round hoop 9 cm - 8 pieces
Round hoop 12 cm - 8 pieces
Round hoop 15 cm - 8 pieces
Round hoop 20 cm x 8 pieces
Square hoop 29 cm x 29 cm - 2 pieces
Rectangular hoop 54 cm x 35 cm - 1 piece
Attachments for embroidering caps with handles - 8 pieces
Hoop for caps to be placed on the hoop station to prepare the machine for embroidery caps - x 4 pieces
Hoop station ensures stability for quick and easy hoop installation - 1 piece

Warranty period of 12 months.

The description of the above product is copyrighted. Their use requires the permission of the copyright owner. Downloading the contents of the above description without the consent of the company Wiking Poland Ltd. based in Krakow is an act of unfair competition in light of the Act of 16 April 1993. "against unfair competition".

Data sheet
Automatic thread trimming
Color Touch Screen
10,4 calowy
Number of memory levels
2oo haftów lub 50 milionów wkłuć
Gripper type
Specjalny szybki japoński Koban HOOK
Accurate Pattern Positioning
WiFi connection to the Internet
High-quality LED lighting
tak podwójny system
Thread break sensor
USB ports
tak 1 port
Embroidery field
400 x 450 mm
Customizing the embroidery on the screen
Embroidery time by color
Maximum operating speed
1000 wkłuć /min
Number of needles in the head
12 igieł
Performs embroidery on caps
Performs embroidery on finished garments
Cap embroidery attachment
Emergency STOP system
Scale with table
650 kg
