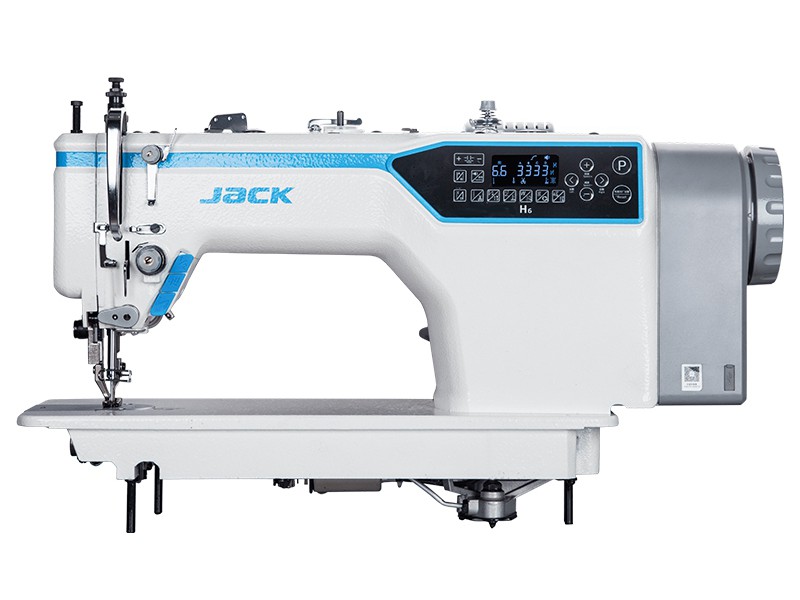

Sewing machine Lockstitch machine 1-needle Jack H6-CZ-4

1-needle lockstitch machine designed for sewing thicker materials (e.g. leather, upholstery materials), with double transport (lower tooth and upper - walking foot) ensuring perfect movement of the upper and lower layers of the sewn materials. It has automatic functions: foot lifting, thread trimming, initial and final bartacking, needle positioning. Equipped with an energy-saving motor built directly into the machine head (Direct Drive system ), which guarantees quiet operation and low electricity consumption. The machine also has a needle positioning function. The machine has a clear operating panel built into the head and LED backlight at the needle bar. The machine is assembled and ready to work.

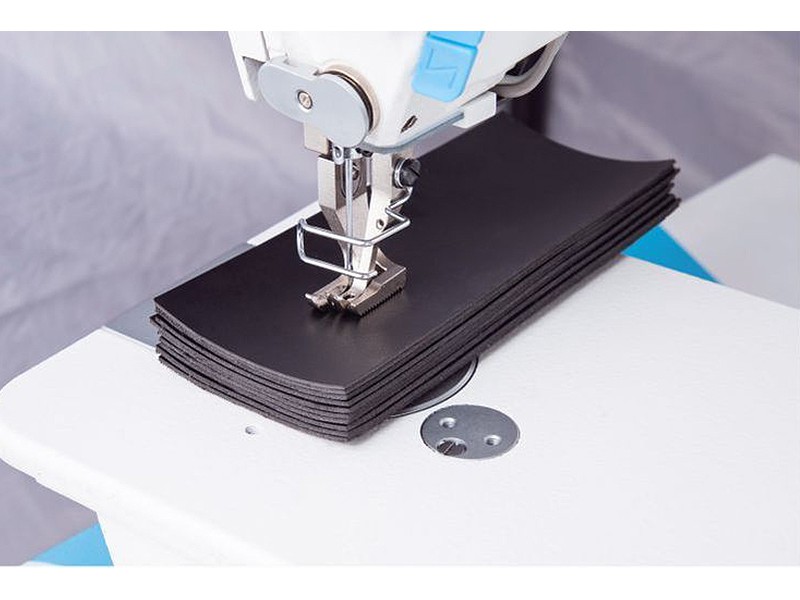

Designed for heavy materials

Excellent transport, 750W motor, extremely powerful for heavy materials, staples up to 8 layers of thin to medium leather with excellent results.

Double transport - tooth and walking foot

The machine has a modern, double transport, lower teeth and an upper walking foot. It guarantees perfect sliding of even the most demanding materials.

Fine stitch length adjustment up to 0.1 mm

The stitch length can be adjusted up to 0.1 mm. It is controlled by a stepper motor. Stitch length adjustment lock has also been introduced.

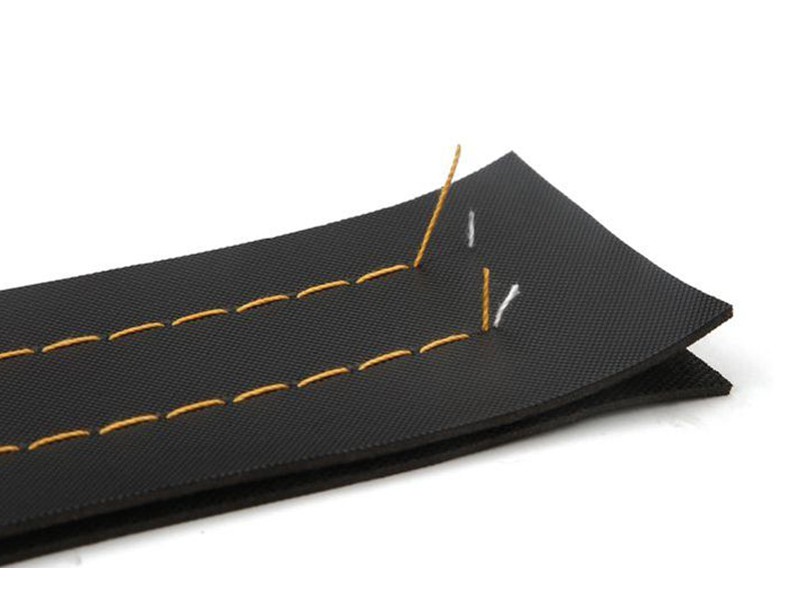

New Automatic thread trimming system

The new generation thread trimming system allows you to obtain a thread length of up to 3.0 mm.

Automatic needle positioning

Electronic needle positioning positions the needle to work.

Makes the start and end bartack

The Jack sewing machine locks and secures the stitch from unraveling at the beginning and end of the stitch.

Automatic presser foot lift

Save time and energy with the special electric presser foot lifter. Easy and effortless!

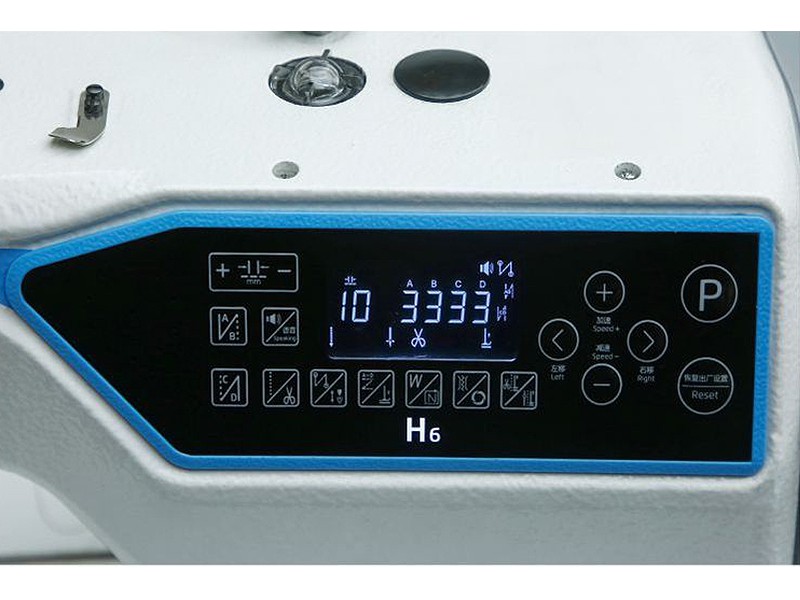

Control panel

We can easily set sewing parameters: speed, needle positioning with convenient buttons.

Very quiet at work

Thanks to the use of a stepper motor to move the teeth, the noise has been drastically reduced: this allows you to work in a quieter and more comfortable working environment.

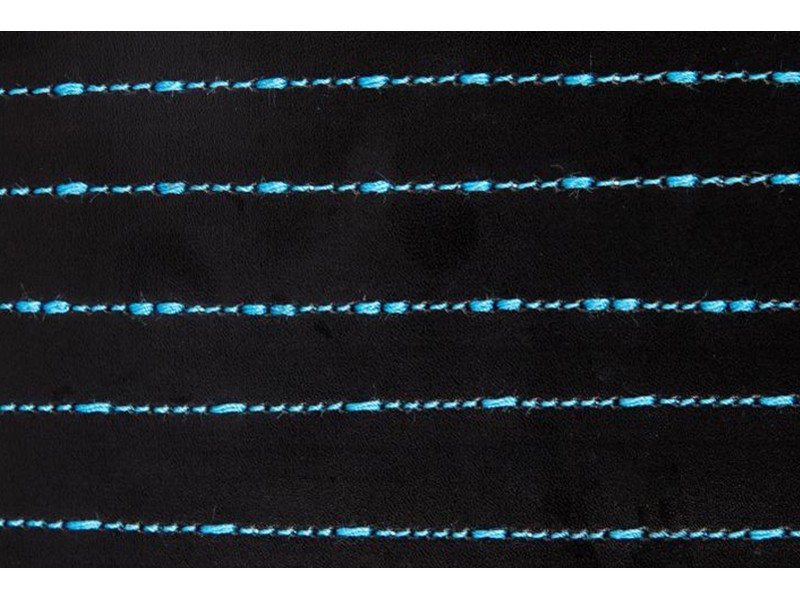

Beautiful decorative stitches

You can create beautiful decorative stitches by alternating stitch length. They can also be modified according to different needs.

Energy-saving AC Servo 230V

Brushless, it has many advantages over traditional motor. It has low friction, is quiet, has a long life cycle, is smaller and lighter. Dedicated to most sewing machines. The most important advantage is the low energy consumption (up to 71% less) compared to standard motors, the ability to easily adjust the speed and the use of a needle positioner. Built into the head of the machine - this technical solution (no suspended motor under the head of the sewing machine and drive belt) eliminates unwanted vibrations and increases the power of the machine.

Presser foot pressure adjustment

The presser foot has a manually adjustable pressure.

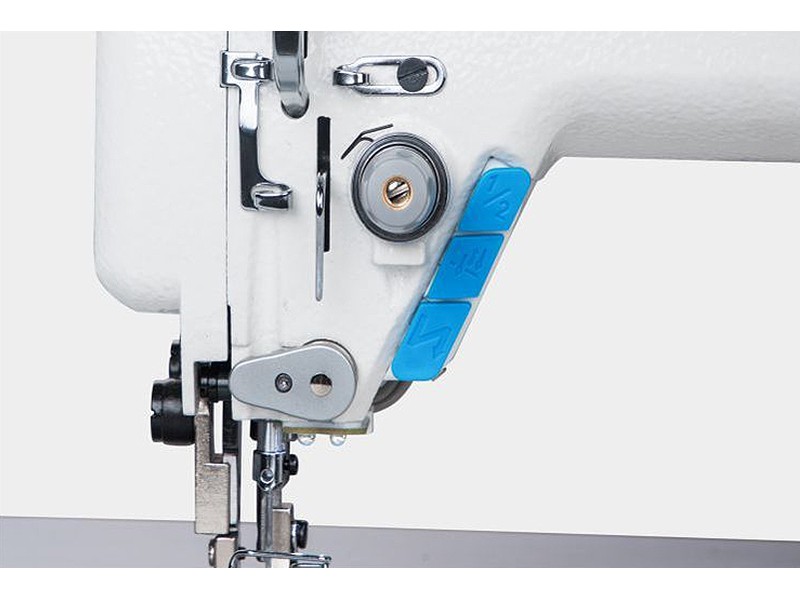

1/2 stitch button

After using this button, you can select the angle and other parameters of the stitch.

LED lighting

The machine has modern LED lighting, which is the closest to natural light and does not strain the eyes. It is lighting in the form of five LEDs with three-level adjustment. It is built into the head of the machine, and the light emitted by energy-saving and durable diodes perfectly illuminates the work area and eliminates the need to install additional lighting at the workplace.

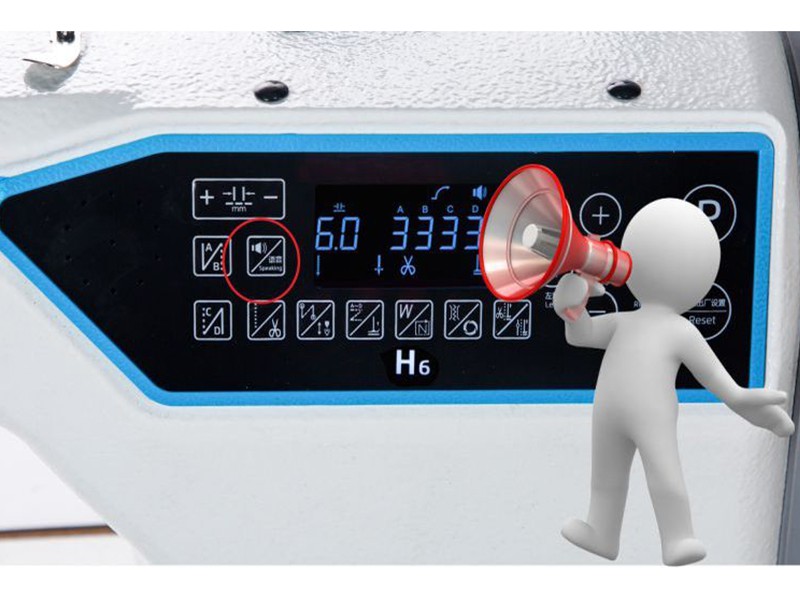

Voice commands

Using the machine, it will teach you different things. In case of errors, it will inform you about it by clicking the VOICE button and will tell you how to solve the problem.

Knee lever included

The machine has a comfortable knee lever.

Central lubrication system and additional lubrication of the presser bar

The lockstitch machine has a central lubrication system with an oil pan. Thanks to this, more precise lubrication of the machine mechanisms is ensured. The presser foot bar is lubricated with solid grease, which eliminates possible oil stains on the material.

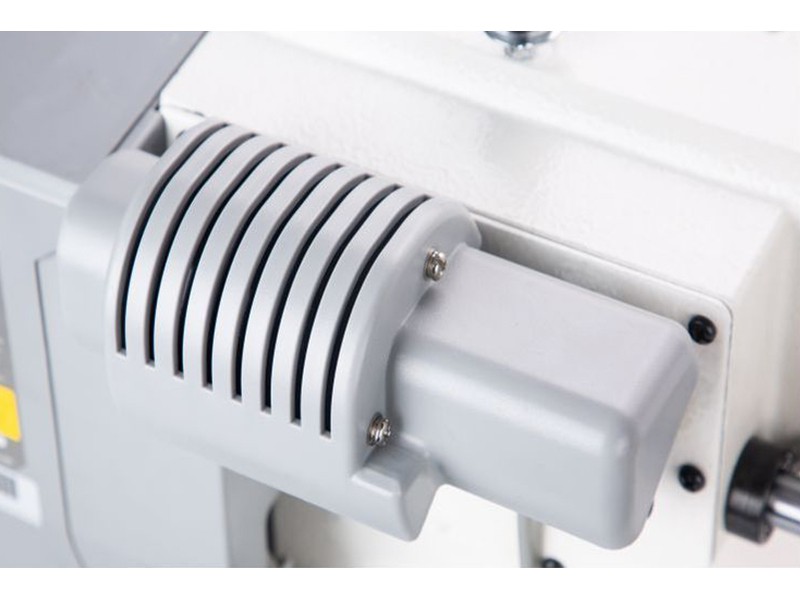

More efficient engine cooling

Special cooling design with a fan ensures effective heat dissipation and longer machine life.

The machine is ready to work

The machine is assembled, adjusted and ready to work.

Machine Parameters:

- for sewing heavy materials

- bottom feed and walking foot

- voltage 220-240V

- integrated, energy-saving AC Servo 750 W motor

- 70% energy saving

- automatic needle positioning functions,

- automatic cropping,

- automatic presser foot lift

- automatic locking,

- integrated, energy-saving LED work area lighting

- maximum sewing speed 2200 stitches/min

- stitch length up to 10 mm

- presser foot lift to 7.5 mm or 16 mm at the knee lever

- central lubrication plus solid lubricant

- needle system 135x17 (DBx17) | NM 125 - 160 (20-23#)

- table top 105 x 55 cm

The machine is covered by a 2-year warranty for individuals or a 1-year warranty for companies. in the door-to-door system (from door to door). This means that we pick up and deliver the machine directly to your home free of charge

Standard equipment of the machine:

- machine head

- high quality table top

- table base with pedal

- drawer

- DBx1 needle mounted + spare set

- metal spool in the bobbin + 1 spare

- user manual

* The manufacturer reserves the right to change the equipment without prior notice.
