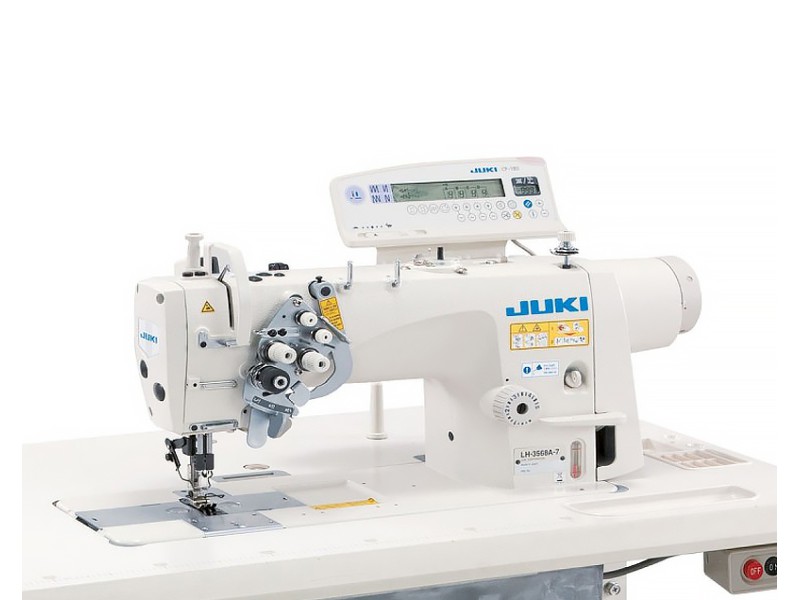

Sewing machine 2-needle lockstitch machine with double transport JUKI LH-3578 AGF-7 automatic

The machine has been modernized, presenting a new look and numerous improvements over the previous generation. The enlargement of the working surface improves the comfort of work when processing large elements, and yet the dimensions of the bed have remained unchanged. A new lubrication system is available as standard, devoid of the traditional oil sump. Oil is supplied in a closed circuit only to the looper mechanism , and excess oil is drained into the sump and re-filtered. This solution ensures that there are no oil leaks from the top of the machine, and at the same time allows you to achieve high sewing speed. The machine is delivered with a full table. The lockstitch machine has a hook and bobbins 1.8 times larger than standard ones! It is designed for medium and heavy materials. P

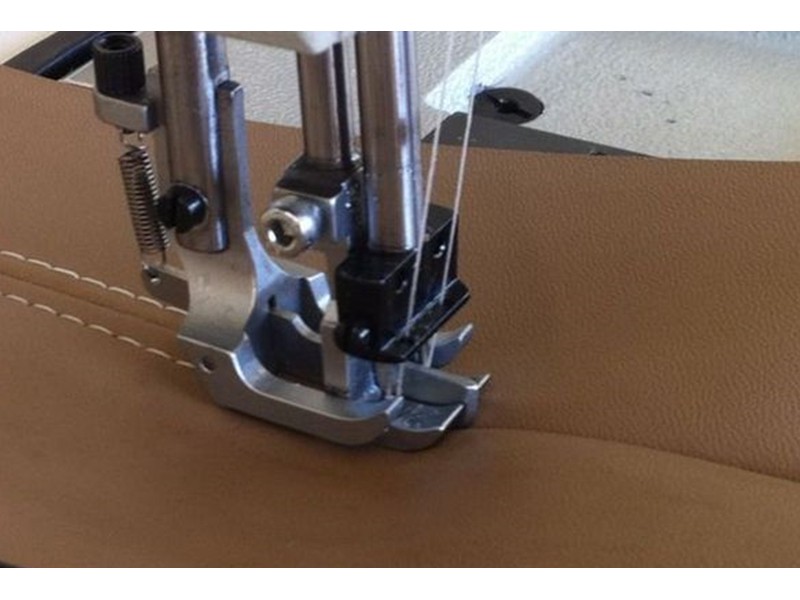

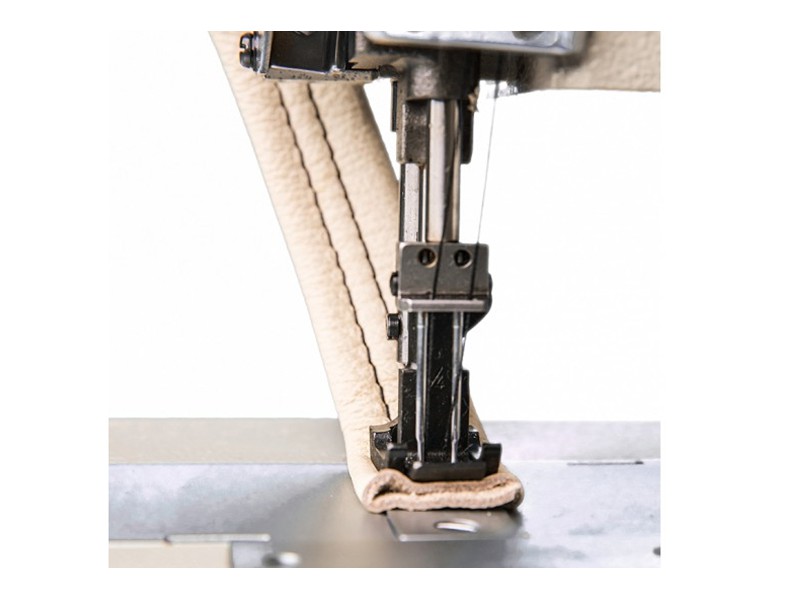

Double material transport

Triple material transport - bottom tooth, walking needle - enables easy and smooth stitching of thick materials with difficult movement.

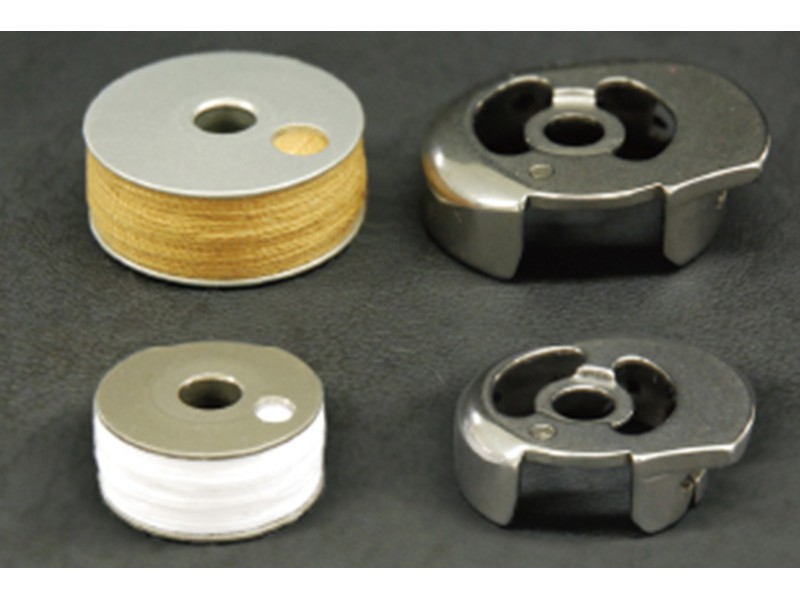

1.8 times larger bobbins and hook

The JUKI LH-3578 ASF-7 lockstitch machine uses 1.8 times larger bobbins and a hook. This increase in size reduces the frequency of bobbin thread replacement.

2-needle lockstitch machine

The machine has 2 needles with a spacing of 6.4 mm. It does not have the ability to turn off the needles.

Automatic thread trimmer

We cut threads quickly and easily. Completely automatic, great working comfort.

Automatic needle positioning

Electronic needle positioning positions the needle to work.

Makes the start and end bartack

The Juki lockstitch machine has the programming of the start and end bartack. The machine locks and secures the stitch against unraveling at the beginning and end of the stitch.

Thread remover - "wiper"

It is a system of moving the thread to the side after cutting the thread.

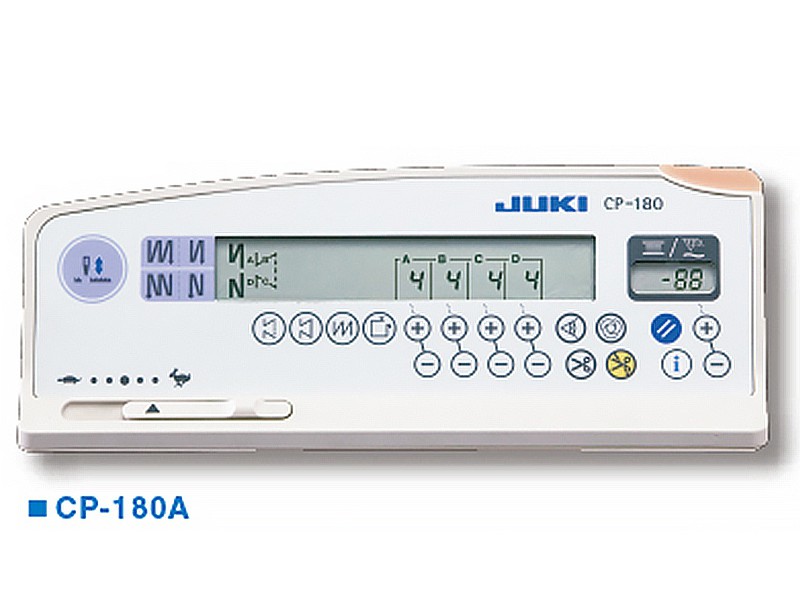

Control Panel

Mounted on the machine head for easy access to setting the machine's operating parameters, including: programming the size of the start and end bartacks before thread cutting, the ability to program an independent number of stitches of the initial and end bartack, the ability to choose a single or double bartack, programming the stitching length, counting the number of stitches between the start and end bar.

Lifting the presser foot with the knee lever

New, additional presser foot lift height adjustment system in the range from 7 mm to 13 mm (using the knee lever).

Energy-saving motor - mounted in the "Direct Drive" head

The drive is an energy-saving AC servo motor (230V) with needle positioning (up and down). Thanks to this construction, the machine works relatively quietly, stably and has a very high piercing force. The most important advantage is low energy consumption (up to 71% less) compared to standard motors. It works quietly and smoothly.

Closed lubrication circuit

Oil in a closed circuit, supplied only to the hook mechanism. The oil escaping from the catcher area falls into the oil sump, from where, after passing through the filter, it is fed back into the closed circuit. A solution that guarantees the absence of any oil leaks from the upper part of the machine (mainly the needle bar) causing staining of the material, while maintaining high sewing speed as in the case of the version with lubrication of all machine mechanisms. Optionally available version without oil return.

Machine included

The machine is complete with a matching table, ready to work.

Machine Parameters:

- stitch length up to 5 mm,

- foot lifting height up to 13 mm

- operating speed up to 3000 punctures/min

- closed lubrication circuit

- DP X 5 needle system

- table top 105 x 55 cm

The machine is covered by a 2-year warranty for individuals or a 1-year warranty for companies. in the door-to-door system (from door to door). Means, that we pick up and deliver the machine directly to your home free of charge

Standard equipment of the machine:

- machine head

- high quality table top

- table base with pedal

- drawer

- set of needles

- metal spool in the bobbin + 1 spare

- user manual

* The manufacturer reserves the right to change the equipment without prior notice.

We invite you to buy needles for sewing various materials, additional bobbins and feet for the machine. You will find everything in the "Accessories" category
