Sewing machine Lockstitch machine AUTOMAT 2-needle Jack-58450J-403

Jack-58450J-403 are 2-needle lockstitch machines with a switched-off needle and double needle-and-cog feed. The machine in the version for light and medium materials is a real support for specialists in the industry. Equipped with innovative solutions, such as a powerful Direct-Drive motor, they offer not only high efficiency, but also quiet and effective operation. Machine with automatic functions: automatic thread trimmer, presser foot lift, needle positioning and bartacking . Available subclasses for sewing light and medium materials. The machine is assembled and ready to work!

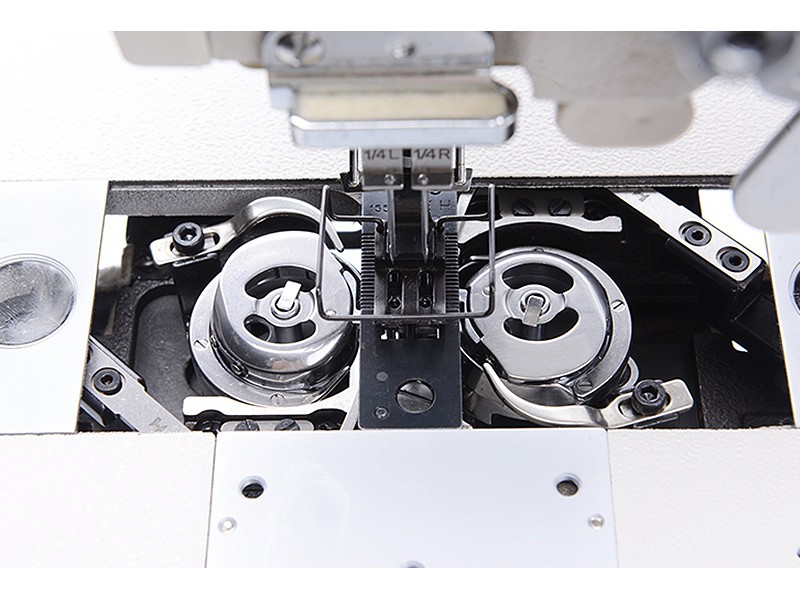

Double material transport

Triple material transport - bottom tooth, walking needle - enables easy and smooth stitching of thick materials with difficult movement.

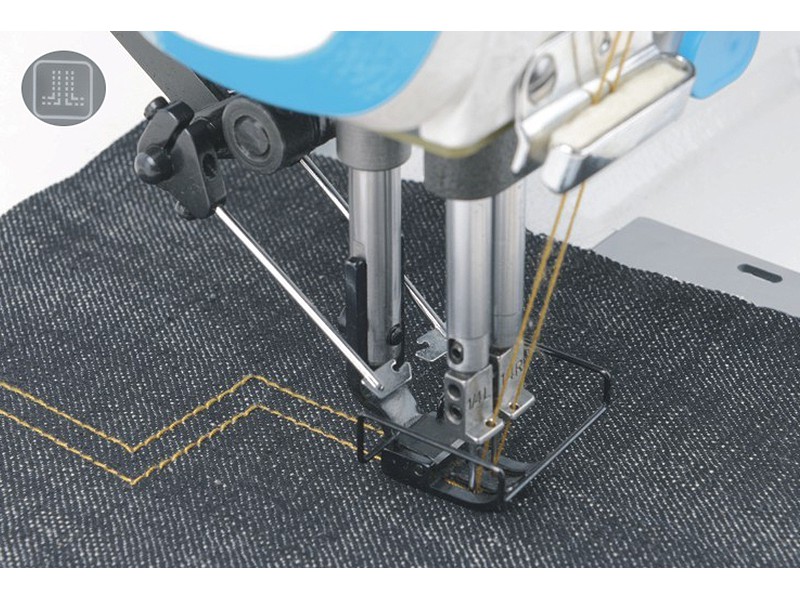

2-needle lockstitch machine

The machine has 2 needles with a spacing of 6.4 mm. It has the ability to turn off the needle, so it can be used as a one-needle lockstitch machine.

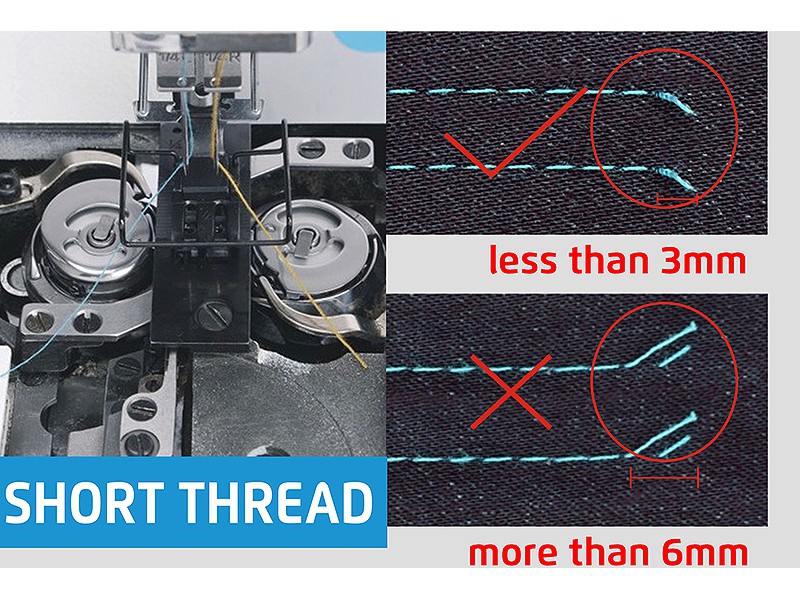

Automatic thread trimmer and presser foot lift in one operation

Quickly and easily cut the threads and raise the presser foot. Completely automatic, great working comfort.

Automatic needle positioning

Electronic needle positioning positions the needle to work.

Makes the start and end bartack

The Jack lockstitch machine has the programming of the start and end bartack. The machine locks and secures the stitch against unraveling at the beginning and end of the stitch.

Lifting the presser foot with the knee lever

New, additional presser foot lift height adjustment system in the range from 7 mm to 13 mm (using the knee lever).

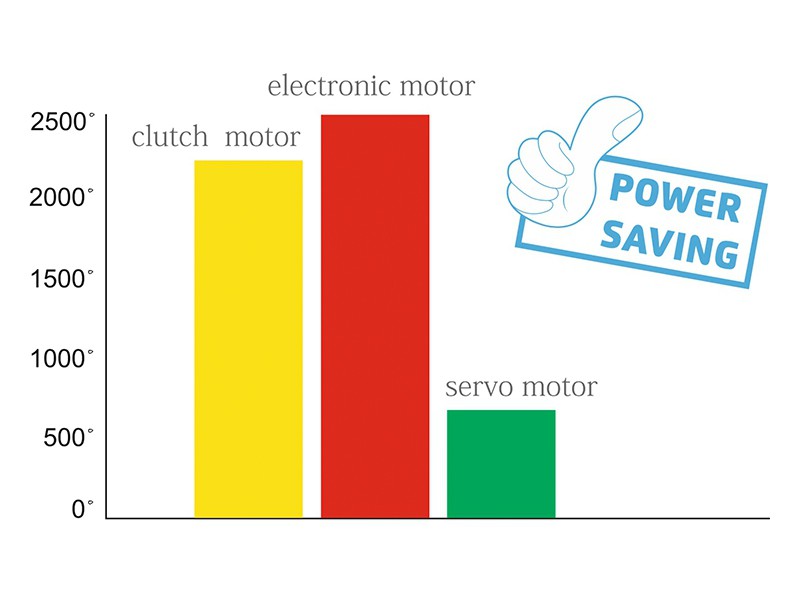

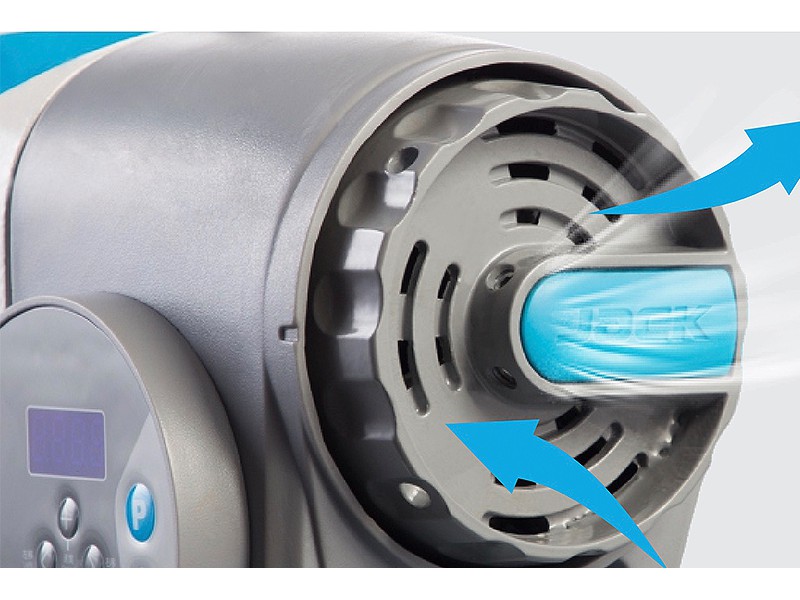

Energy-saving motor - mounted in the "Direct Drive" head

The drive is an energy-saving AC servo motor (230V) with needle positioning (up and down). Thanks to this construction, the machine works relatively quietly, stably and has a very high piercing force. The most important advantage is low energy consumption (up to 71% less) compared to standard motors. It works quietly and smoothly.

Closed lubrication circuit

Oil in a closed circuit, supplied only to the hook mechanism. The oil escaping from the catcher area falls into the oil sump, from where, after passing through the filter, it is fed back into the closed circuit. A solution that guarantees the absence of any oil leaks from the upper part of the machine (mainly the needle bar) causing staining of the material, while maintaining high sewing speed as in the case of the version with lubrication of all machine mechanisms. Optionally available version without oil return.

Deactivated needle

Turning off the needles is done by means of buttons located on the panel located next to the needle bar. When the needle bar is turned off, it turns on automatically, thanks to which we get a perfect hem in the corners.

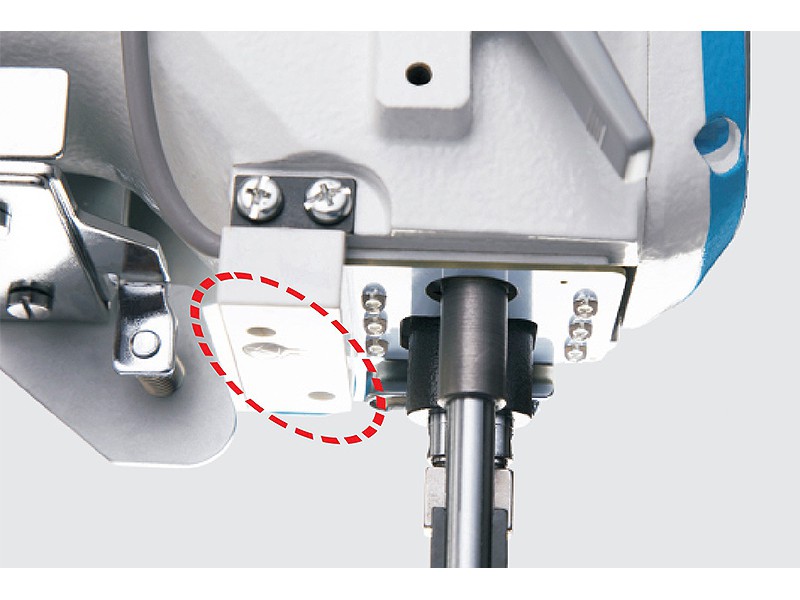

LED lighting

LED lighting is adjustable. There are three levels of light intensity.

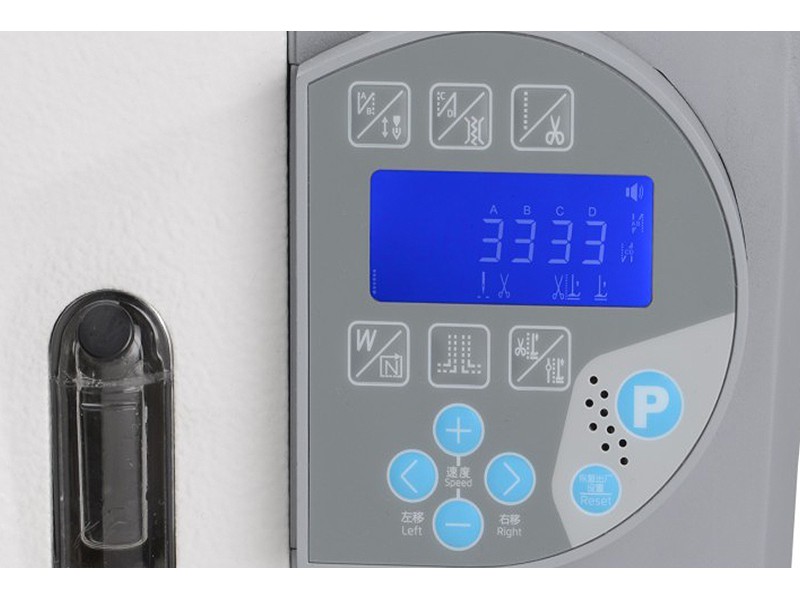

Control Panel

Control panel enabling easy and efficient control of automatic functions and setting stitch and sewing parameters.

Machine included

The machine is complete with a matching table, ready to work.

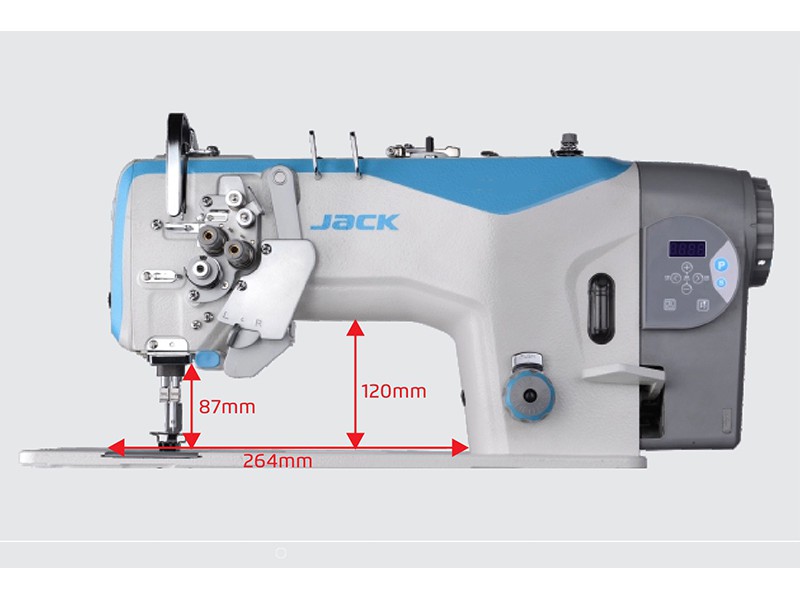

Machine Parameters:

- stitch length up to 5 mm,

- foot lifting height from 7 -13 mm

- operating speed up to 3000 punctures/min

- closed lubrication circuit

- needle gauge 6.4 mm (other gauges available on request)

- DP X 5 needle system

- table top 105 x 55 cm

The machine is covered by a 2-year warranty for individuals or a 1-year warranty for companies. in the door-to-door system (from door to door). This means that we pick up and deliver the machine directly to your home free of charge

Standard equipment of the machine:

- machine head

- high quality table top

- table base with pedal

- drawer

- set of needles

- metal spool in the bobbin + 1 spare

- user manual

* The manufacturer reserves the right to change the equipment without prior notice.

We invite you to buy needles for sewing various materials, additional bobbins and feet for the machine. You will find everything in the "Accessories" category
