Lockstitch sewing machine, 1-needle, automatic Jack A7-DH

4,599.00 zł

3 739,02 zł Netto

Advanced Precision and Performance for Medium and Heavy Materials!

Innovative automatic single-needle lockstitch machine Jack A7-DH for medium and heavy materials. The machine is equipped with an electronic transport system (teeth movement programming system) controlled by stepper motors. and a closed lubrication system. Equipped with an integrated, energy-saving motor mounted in the head, directly on the main shaft of the machine ( DIRECT DRIVE system ), which guarantees quiet and reliable operation and lower electricity consumption. The machine uses a stepper motor that controls the stitch length setting and is responsible for locking. This way, the noise level during locking is reduced, and the stitch length setting is precise (accuracy up to 0.1 mm). The machine has a number of automatic functions (thread cutting, needle positioning, programmable starting and ending bartack, automatic presser foot lifting, electronic thread tension system). The lockstitch machine is a complete machine, adjusted and ready for immediate operation.

help_outlineAsk about product
Lockstitch sewing machine, 1-needle, automatic Jack A7-DH

Lockstitch sewing machine, 1-needle, automatic Jack A7-DH

I accept privacy policy rules

Buy on 0% installments - click on the selected button below to check installments in the calculator

Get acquainted with the EU program "First Business - Support for Taking Off"

Jack A7-DH is a professional sewing machine with lower feed, designed for sewing light and medium materials. The machine is equipped with an electronic transport system (teeth movement programming system) controlled by stepper motors. and a closed lubrication system . It is complete and ready for immediate operation, and its automatic functions, such as thread cutting, needle positioning, programmable starting and ending bartack and automatic presser foot lifting, increase the comfort of use and provide optimal working conditions. Jack A7-DH also has a stepper motor that allows you to electronically determine the stitch length with an accuracy of 0.1 mm, and a stitch section programming function that allows you to obtain effective decorative stitches. These patterns can be remembered and individually configured from the panel, and can also be used as reinforced stitches, improving the stitching strength. Jack A7-DH has voice notifications in Polish. It also has an improved design of the material transport and pressure system, which increases the thickness of the sewn material.

New Automatic thread cutting system

The new generation thread cutting system allows you to obtain a thread length of up to 3.5 mm.

Automatic needle positioning

Electronic needle positioning sets the needle to work.

Makes the starting and ending bolt

The Jack sewing machine locks and protects the stitch against unraveling at the beginning and end of the stitch.

Automatic presser foot lift

A new, additional system for adjusting the presser foot lifting height from 0 to 13 mm. It allows you to adjust the automatic presser foot lifting height to the thickness and fluffiness of the fabrics being sewn. This makes it much easier to maneuver the fabric under the presser foot.

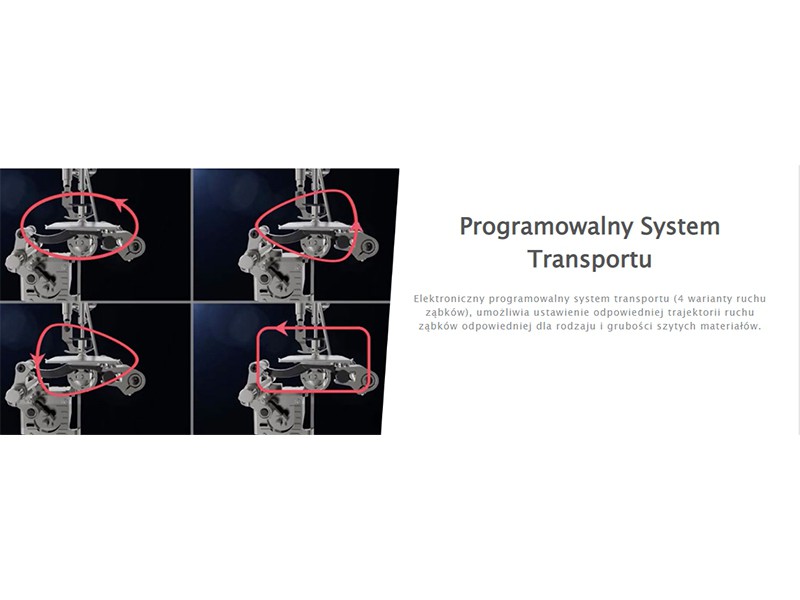

New electronic tooth shifting system

The Jack A7-D lockstitch machine is equipped with a new electronic transport system that allows programming the movement of the conveyor teeth , which is controlled by stepper motors. Using the system is very simple - with one button, the user selects one of four tooth movement trajectories: Standard materials - standard transport for light and medium fabrics (blouses, workwear and casual clothes, light trousers, etc.) Slippery materials - thread tightening and wrinkle prevention layers of fabric (women's clothing, pajamas, sun and rain protective clothing, etc.) Thin and soft fabrics - reducing thread tension and preventing needle breakage (sportswear, underwear, dresses, etc.) Heavy fabrics - sewing multiple layers, sewing on thickening , preventing needle breakage (coats, jackets, jeans, sweaters, etc.)

Electronic regulation of sewing density

A very accurate electronic system for adjusting the sewing density with an accuracy of 0.1 mm and a maximum length of 5 mm

A talking machine

A unique feature of Jack A4F lockstitch machines is the use of a speech synthesizer, which guarantees the provision of voice information in English. The messages it speaks make it much easier and more efficient to use the many functions it is equipped with.

Energy-saving AC Servo motor

Brushless, it has many advantages over a traditional motor. It has low friction, is quiet, has a long cycle life, is smaller and lighter. Dedicated to most sewing machines. The most important advantages are low energy consumption (up to 71% less) compared to standard motors, the ability to easily adjust the speed and the use of a needle positioner.

Closed lubrication circuit

This model is characterized by a closed lubrication system (without the oil pan typical for machines) - a small amount of oil is located in a closed tank, which protects against contamination. This not only reduces engine oil consumption, but also ensures better lubrication of individual machine mechanisms.

Makes decorative stitches

The lockstitch machine is equipped with a function for programming stitch sections, which makes it possible to obtain effective and reinforced patterns consisting of a lockstitch stitch sewn in a front-back sequence.

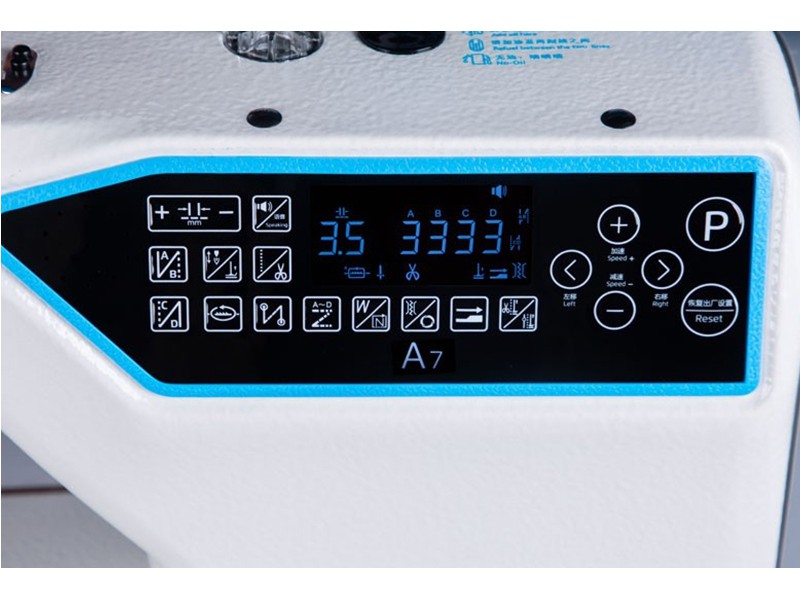

Programming sewing parameters - 3 function buttons

We can easily program sewing parameters using three convenient buttons. Thanks to them, we can lock, add a stitch and sew 1/2 of the stitch length.

LED lighting

The machine has modern LED lighting, closest to natural light and does not strain the eyes.

Machine included

The machine comes complete with a matching table.

Machine parameters:

- stitch length up to 5 mm,

- presser foot lifting height up to 13 mm

- working speed up to 3500 injections/min

- central lubrication

- needle system 16X231 (DBX1)

- table top 105 x 55 cm

- USB port

The machine is covered by a 2-year warranty for individuals or 1 year for companies. in the door-to-door system. This means that we collect and deliver the machine directly to your home free of charge

Standard equipment of the machine:

- machine head with a built-in energy-saving motor

- high-quality table top

- table base with pedal

- drawer

- DBx1 needle installed + spare set

- metal bobbin in the bobbin + 1 spare

- user manual

* The manufacturer reserves the right to change equipment without prior information.

We invite you to purchase needles for sewing various materials, additional bobbins and presser feet. You will find everything in the "Accessories" category

Description of the above product is protected by copyright. Their use requires the permission of the copyright owner. Downloading the content of the above description without the consent of Wiking Polska Sp. z o.o. based in Krakow constitutes an act of unfair competition in the light of the ACT of April 16, 1993 "on combating unfair competition".

Jack-A7-DH
10 Items

Data sheet

Automatic thread trimmer
Yes
Stitch length adjustment
from 1.2 -5.0 mm
sewing speed
3500 injections/min
Central lubrication
closed lubrication system
Needle system
16x231 (DBX1)
Presser foot lift height
up to 13 mm
Automatic needle positioning
Yes
Automatic presser foot lift
Yes
Automatic locking
starting and ending bolt
2-needle lockstitch machine
NO
1-needle lockstitch machine
Yes
Destiny
for medium and heavy materials
Material transport
Bottom feed with tines
